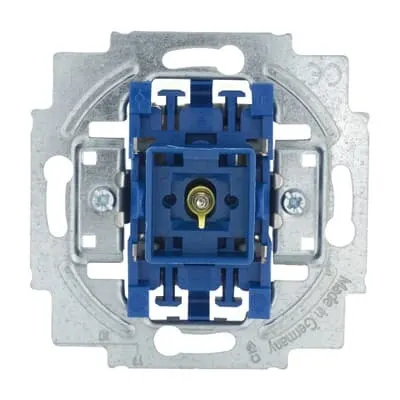

ABB 2CKA001413A1109 Flush Mounted Inserts - Neon Lamp IP20
Part Number: 2CKA001413A1109
Quick Summary
ABB 2CKA001413A1109 flush mounted inserts with neon lamp provide clear, visible actuation indicators for panel and cabinet control. Engineers often struggle with unreadable indicators in constrained spaces, risking misoperation during critical sequences. This device carries CE conformity, RoHS compliance, and IP20 protection to meet common industrial standards. Designed to pair with major Busch-Duro 2000 SI and Reflex SI design ranges, it simplifies panel upgrades and stockkeeping while delivering reliable performance for automation and safety panels.
Product Information
Extended Description
2CKA001413A1109 ABB: With illumination. With N terminal.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Contacts Configuration
0 NO, 1 NC
Number of Poles
1P
Number of Rocker Switches
1
Actuator Type
Pull cord
Lamp Type
Neon lamp
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
0.14 m
Product Net Height
0.227 m
Product Net Depth / Length
0.181 m
Product Net Weight
93 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2020 USGL-103
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 USGL-103
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature: Flush mounted mounting type with claw or screw fastening reduces panel cutout complexity and delivers a clean, space-saving footprint. Business Impact: Faster installation, fewer mounting errors, and ergonomic panels that minimize operator fatigue in tight spaces. Application: Ideal for machine control enclosures and control panels where aesthetics and reliability matter. Feature: 1P with 0 NO and 1 NC contacts plus a neon lamp status indicator improves visibility and control logic. Business Impact: Clear signaling reduces mis-sensing events and enables straightforward wiring for safety interlocks. Application: Suitable for start/stop or interlock push-button functions in industrial automation. Feature: Rated 250 V and 10 A with a thermoplastic housing delivers robust performance in standard control circuits. Business Impact: Supports common automation loads while maintaining compact form; reduces replacement delays. Application: Perfect for panel indicators on low- to mid-power machines. Feature: IP20 protection, RoHS compliance, and CE declaration ensure regulatory alignment and safer operation. Business Impact: Lowers compliance risk and streamlines procurement with certified components. Application: Suitable for indoor, dry environments of machine rooms and control cabinets. Feature: Built-in depth of 32 mm and a compact profile fit narrow panel cavities. Business Impact: Enables denser control layouts and easier retrofits. Application: Ideal for retrofit projects in legacy panels that require minimal machining.
Get a Quick Quote for a ABB 2CKA001413A1109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A1109?
Enquire Now
FAQs
Installation starts with selecting a flush-mounted mounting cutout that accommodates the device’s 32 mm built-in depth. Use either claw or screw mounting for secure retention. Ensure the panel is rated for 250 V and the wiring reflects 1 NC contact configuration. The neon lamp provides immediate visual feedback once connected to the 250 V supply.
The unit operates at 250 V and is rated for up to 10 A, configured as 1P with 0 normally open and 1 normally closed contacts. The neon indicator offers clear signaling, and the assembly is designed for standard control circuits in indoor industrial environments, aligning with CE and RoHS requirements.
Yes. With a single pole, normally closed contact arrangement and a neon status lamp, the insert is well-suited for safety interlock and start/stop signaling in automation panels. Its compact depth and robust thermoplastic housing support reliable operation in typical machine rooms while maintaining visibility for operators.
The device carries CE conformity documentation and RoHS compliance per EU directives. It is listed under ETIM 9 as a push button and adheres to standard industrial requirements for indoor electrical panels, ensuring regulatory alignment and smoother procurement and audit processes.
Absolutely. The design range includes compatibility with platforms such as Busch-Duro 2000 SI and Reflex SI, among others. This ensures a smooth retrofit path and consistent aesthetics across control panels while preserving existing wiring practices and panel layouts.
