ABB 2CKA001413A1111 Pull Switch Insert - IP20
Part Number: 2CKA001413A1111
Quick Summary
ABB 2CKA001413A1111 pull-switch insert enables compact control for 1P 1NC circuits in industrial panels. Space constraints and wiring complexity often slow panel builds, driving costs and downtime. This unit meets CE conformity with RoHS and REACH declarations and carries IP20 protection, ensuring safe operation in standard factory environments. Illumination is optional and can be added via accessory, expanding visibility in dimly lit areas. The flush-mounted design and versatile mounting options support claw or screw fastenings, easing installation for panel builders and end users. By aligning with these regulatory and design standards, this module delivers reliable signaling and control without compromising footprint or maintenance overhead.
Product Information
Extended Description

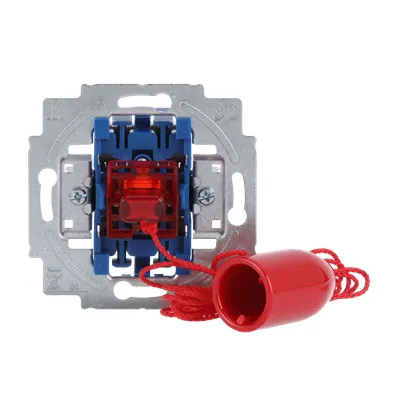

2CKA001413A1111 ABB: With 2-metre pull cord, red handle, and red transparent indicator part.
With 2 independent signalling contacts.
Can be illuminated by using a Illumination set as an accessory.
Instructions and Manuals
Connection diagram (.PDF) [DE] 2020 USJ-10-503; 2020/10 US; 2020/01 US
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Contacts Configuration
0 NO, 1 NC
Number of Poles
1P
Number of Inputs
2
Number of Rocker Switches
1
Wiring Configuration
1-pole push switch
Actuator Type
Pull cord
Illumination
Optional
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NC
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | future | future linear | Busch-axcent | Busch-axcent pur
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
48 mm
Product Net Weight
66 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2020/10 US-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020/10 US-101
ETIM 9
EC000029 - Push button
eClass
-empty- | V11.0 : 27144044
Flush-mounted footprint with a 71 mm width and 71 mm height reduces panel cutouts and simplifies front-face aesthetics, saving enclosure space and enabling quicker assemblies. This directly translates to lower installation time and a more compact control panel footprint for end users, especially in retrofits or space-constrained machines. The unit provides 1 pole with 1 NC contact rated for 250 V at 10 A, plus 2 inputs and 2 independent signalling contacts, ensuring dependable control and clear signaling in automation lines while remaining compatible with standard screw-terminal wiring. Mounting versatility supports claw or screw fastening and includes a flush-mounted insert with mounting plate, delivering fast, error-free installation in new builds or upgrades. Optional Illumination expands visibility without extra wiring, benefiting low-light environments and safety interlocks. Compliance assurances through CE, RoHS, and REACH declarations reduce risk for regulated industries, while IP20 protection covers everyday factory conditions. The compact form factor fits Busch-Duro, Reflex SI, and other modular ranges, providing designers with a scalable solution for panel architecture and future upgrades. Overall, the design supports reduced maintenance, predictable performance, and a smoother procurement process for panel builders and OEMs.
Get a Quick Quote for a ABB 2CKA001413A1111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A1111?
Enquire Now
FAQs
This insert is designed for flush-mounted installation with a mounting plate and can be secured using either a claw or screw method. It uses screw terminals for wiring, supports a 2 m pull cord, and aligns with 71x71 mm front-face dimensions to minimize panel cutouts. For best results, follow the included connection diagram to ensure proper terminal configuration and secure mounting, reducing the risk of loose wiring and vibration during operation.
The device provides a 1P arrangement with 1 NC contact, rated for 250 V at up to 10 A. It features two inputs and two independent signalling contacts, enabling reliable control signaling in a single-pole push-switch configuration. Terminal type is screw-based, supporting secure, vibration-resistant connections ideal for industrial environments.
Illumination is optional and can be added via a dedicated accessory. This keeps wiring minimal while offering enhanced visibility in low-light settings. Since illumination is accessory-based, standard screw-terminal wiring remains unaffected, allowing a straightforward upgrade path without rewiring the control circuit.
The product carries CE conformity with related declarations, and RoHS and REACH compliance are documented. WEEE categorization is noted as Small Equipment, with an established IP20 protection level. These certifications provide regulatory assurance for European markets and support sustainable, compliant panel designs.
The unit offers a space-efficient 71x71 mm footprint with a 25 mm built-in depth, lightweight design (about 66 g), and screw-terminal wiring for dependable installation. Its 1NC, 10 A rating meets common automation needs, while optional illumination improves operator visibility. The combination reduces installation time, supports modular design with future family integration, and lowers maintenance costs through robust, compliant construction.
