ABB 2CKA001413A1112 Pull Switch Insert - IP20
Part Number: 2CKA001413A1112
Quick Summary
ABB 2CKA001413A1112 pull switch insert provides reliable 1-pole control for industrial panels and machinery. In tight spaces, engineers face challenges with compact, regulatory-compliant signaling devices, but this unit offers flush mounting and straightforward wiring to simplify installation. This product carries CE conformity, RoHS compliance, and REACH declarations, helping meet European and global standards while reducing risk. With an optional illumination set, the indicator adds visibility in low-light environments, and its 10 A, 250 V rating supports standard control circuits. Designed for modular integration, it complements Busch-Duro 2000 SI, Reflex SI, and related faceplates, delivering consistent aesthetics and improved maintenance planning for control stations.
Product Information
Extended Description

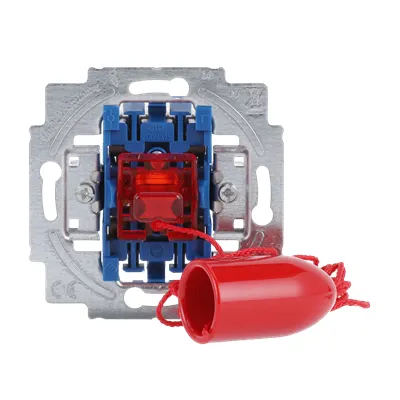

2CKA001413A1112 ABB: With 2-metre pull cord, red handle, and red transparent indicator part.
With 2 independent signalling contacts.
Can be illuminated by using a Illumination set as an accessory.
Instructions and Manuals
Connection diagram (.PDF) [DE] 2020 USJ-10-503; 2020/10 US; 2020/01 US
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Inputs
2
Number of Rocker Switches
1
Wiring Configuration
1-pole push switch
Actuator Type
Pull cord
Illumination
Optional
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NO
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | future | future linear | Busch-axcent | Busch-axcent pur
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
48 mm
Product Net Weight
66 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2020/01 US-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020/01 US-101
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature → Business Impact → Application: Pull cord actuation with a 2-meter length reduces operator reach requirements and keeps wiring tidy inside enclosures, enabling faster resets and safer access in machinery with limited handle space such as conveyor gates or guard doors. This supports reduced downtime and improved production throughput in demanding environments. Feature → Business Impact → Application: 1P, 1NO contacts deliver clear signaling paths for simple, reliable control circuits, minimizing mis-wiring risk and enhancing panel clarity in control stations and interlock systems. Feature → Business Impact → Application: IP20 rating and flush-mounted design reduce dirt ingress and footprint while maximizing enclosure aesthetics; ideal for compact panels and modular installations. Feature → Business Impact → Application: Optional illumination adds immediate status visibility, lowering inspection time and improving operator awareness in low-light facilities. Feature → Business Impact → Application: Screw terminals and 250 V / 10 A ratings ensure straightforward field wiring, robust operation, and compatibility with standard automation wiring practices in industrial panels. Feature → Business Impact → Application: RoHS, REACH, and CE declarations provide regulatory assurance, supporting compliance-driven procurement and reducing risk in automated manufacturing lines.
Get a Quick Quote for a ABB 2CKA001413A1112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A1112?
Enquire Now
FAQs
The unit is designed for flush-mounted installation and uses screw terminals for straightforward field wiring. It supports 1P, 1NO configuration with a 2 m pull cord, and is compatible with common modular faceplates such as Busch-Duro 2000 SI and Reflex SI, enabling consistent aesthetics and simplified replacements in existing panel designs.
It provides 250 V rated voltage, 10 A rated current, and a 1 NO, 1P contact configuration. The IP20 protection rating protects against dust ingress in clean indoor environments. Activity is actuated by a 2 m pull cord with a red indicator option, and wiring uses screw terminals for durable, field-friendly connections.
Illumination is optional via an accessory illumination set. When equipped, the red indicator enhances visibility in dim environments, improving operator response times. Integrating the illumination accessory does not alter the basic 1P 1NO electrical path and remains compatible with standard control panel wiring.
The device carries CE conformity and RoHS compliance, along with a REACH declaration and WEEE categorization. These certifications help ensure regulatory alignment for European and global markets, supporting compliant procurement, and reducing compliance risk in automation projects.
Its compact, flush-mounted design saves enclosure space and reduces cleanability concerns. The screw-terminal wiring simplifies maintenance and field troubleshooting, while modular compatibility with popular faceplates streamlines stocking and replacements. Combined with reliable electrical ratings and optional illumination, the unit offers measurable uptime improvements and lower lifecycle costs for control stations.
