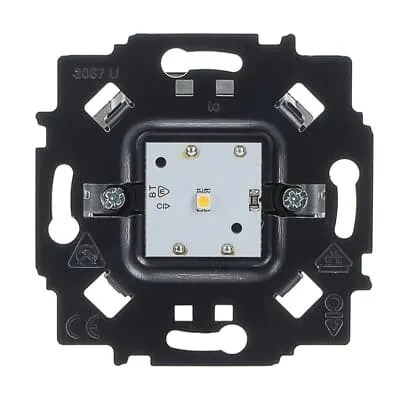

ABB 2CKA001510A0012 LED insert - IP20
Part Number: 2CKA001510A0012
Quick Summary
ABB 2CKA001510A0012 LED insert provides low-brightness night lighting for Busch-iceLight wall and ceiling modules. It addresses the challenge of finding a compact, energy-saving night light that fits flush-mount installations and standard wiring schemes. This unit complies with CE conformity, RoHS, REACH, and WEEE, delivering regulatory assurance for commercial spaces. Flush-mounted installation with a mounting plate minimizes space impact while delivering consistent warm white illumination. Low power draw, 0.15 W system consumption, and a simple 230 V supply translate to lower operating costs and longer maintenance intervals.
Product Information
Extended Description
2CKA001510A0012 ABB: For Busch-iceLight wall and ceiling module Type 2068/xx. For low brightness (night light). Colour temperature: 3,000 K (warm white) Not dimmable. System power consumption: 0.15 W Rated voltage: 230 V~, + 10% / - 10% Current consumption of LED: 40 mA (secondary) Secondary: SELV
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 206x/1x-84 206x/21 2067/1x U
Wiring Diagram
Connection diagramm [EN] 2067_b
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation 0 ... +40 °C
Degree of Protection
IP20
Energy Efficiency Class
A
Number of LEDs
1
Lamp Type
Night light
Lamp Color
Warm White
Terminal Type
Screw Terminals
Color Temperature (@Tcol)
3000 K
Rated Voltage (Ur)
230 V AC
Rated Frequency (f)
50/60 Hz
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | future | future linear | Busch-axcent | Busch-axcent pur
Shape
Square
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
33 mm
Product Net Weight
64 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2067/13 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2067/13 U
ETIM 9
EC000996 - LED-module
eClass
V11.0 : 27111125
Feature: Flush Mounted Design with Mounting Plate. Business Impact: Reduces installation footprint and simplifies retrofits in existing Busch-iceLight installations, enabling cleaner ceilings and walls. Application: Wall and ceiling modules in corridors or service areas benefit from a discreet night-light presence without bulky fixtures. Feature: 230 V AC supply with 50/60 Hz compatibility. Business Impact: Seamless integration into standard electrical infrastructure reduces wiring complexity and commissioning time. Application: Commercial buildings and industrial facilities require reliable, universal power compatibility. Feature: 0.15 W system power and 40 mA LED current. Business Impact: Very low energy consumption translates to ongoing cost savings and reduced thermal load. Application: Continuous use in hallways, stairwells, and access points where minimal heat is desirable. Feature: Warm White 3000 K color and single LED element. Business Impact: Consistent ambience suitable for wayfinding and occupation comfort. Application: Day-to-day safety lighting for navigation in busy environments. Feature: IP20 protection and SELV secondary circuit. Business Impact: Enhanced user safety and compliance with enclosure protection standards. Application: Indoor installation in controlled environments where dust ingress is limited. Feature: Screw terminal connections and flush-mounted construction. Business Impact: Straightforward installation and robust reliability with minimal maintenance. Application: Industrial settings requiring durable, serviceable night-light inserts that fit standard mounting plates. Feature: RoHS and REACH with WEEE compliance. Business Impact: Regulatory peace of mind and sustainability alignment for procurement. Application: Global deployments across regions with strict materials and waste directives.
Get a Quick Quote for a ABB 2CKA001510A0012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001510A0012?
Enquire Now
FAQs
This LED insert is designed for flush-mounted integration with Busch-iceLight wall and ceiling modules, using a mounting plate for a secure fit. It employs screw terminals for straightforward wiring and fits standard industry insert dimensions (71 mm x 71 mm faceplate, 32 mm built-in depth). Ensure the mounting location adheres to the IP20 protection requirement and available space within the enclosure.
The unit operates at 230 V AC with a supply frequency of 50/60 Hz. The system power consumption is 0.15 W, with a LED current of 40 mA on the secondary SELV circuit. It uses a single LED and is rated for warm white illumination at 3000 K, suitable for general night-light applications in controlled environments.
Yes. It features IP20 protection, a 0 to +40 °C ambient operating range, and a compact flush-mounted form factor ideal for corridors and service areas. The warm white output (3000 K) provides clear wayfinding without glare, while the low power draw minimizes heat and running costs in high-traffic spaces.
The LED insert complies with CE conformity, RoHS, REACH, and WEEE requirements. It also includes a Declaration of Conformity and aligns with ETIM and eClass classifications. This combination ensures regulatory compliance for European and global deployments, supporting safe integration into compliant lighting systems and efficient procurement processes.
The device’s 0.15 W power consumption and warm white output deliver energy-efficient operation with minimal operating costs. Its compact flush-mounted design reduces installation time, lowers retrofit costs, and extends maintenance intervals due to robust construction and screw-terminal reliability. Combined, these factors contribute to faster payback in facilities with extensive night-light requirements.
