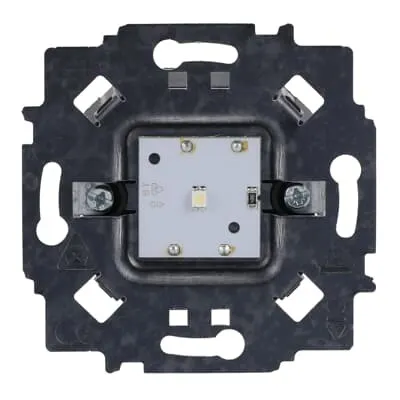

ABB 2CKA001510A0013 Night Light Insert - IP20, 6500K
Part Number: 2CKA001510A0013
Quick Summary
ABB 2CKA001510A0013 Night Light Insert provides subtle 6500 K illumination for Busch-iceLight wall and ceiling modules. Engineers often struggle with balancing low-brightness night light needs against energy waste and wiring complexity. This flush-mounted insert delivers CE conformity, RoHS and REACH declarations while offering an IP20 rating for dependable operation in everyday industrial environments. With a compact footprint and simple screw-terminal wiring, it reduces installation time and energy costs, while fitting neatly into existing Busch-Duro 2000 SI, Reflex SI, and Pure Stainless Steel designs. It’s an economical, maintenance-friendly solution for corridor and stairwell illumination, and supports consistent night-light performance across B2B lighting installations.
Product Information
Extended Description
2CKA001510A0013 ABB: For Busch-iceLight wall and ceiling module Type 2068/xx. For low brightness (night light). Colour temperature 6,500 K (cold white) Not dimmable. System power consumption: 0.15 W Rated voltage: 230 V~, + 10% / - 10% Current consumption of LED: 40 mA (secondary) Secondary: SELV
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 206x/1x-84 206x/21 2067/1x U
Wiring Diagram
Connection diagramm [EN] 2067_b
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation 0 ... +40 °C
Degree of Protection
IP20
Energy Efficiency Class
A
Number of LEDs
1
Lamp Type
Night light
Lamp Color
Cold White
Terminal Type
Screw Terminals
Color Temperature (@Tcol)
6500 K
Rated Voltage (Ur)
230 V AC
Rated Frequency (f)
50/60 Hz
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | future | future linear | Busch-axcent | Busch-axcent pur
Shape
Square
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
33 mm
Product Net Weight
64 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2067/14 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2067/14 U
ETIM 9
EC000996 - LED-module
eClass
V11.0 : 27111125
Low power LED insert draws only 0.15 W system power while the LED itself consumes 40 mA on the secondary circuit, delivering energy-efficient night lighting. This translates into lower running costs for corridors and signage in busy facilities, especially where multiple modules run continuously. The flush-mounted design with a mounting plate delivers a clean, unobtrusive aesthetic and speeds installation, reducing downtime during retrofits in Busch-iceLight systems. With IP20 protection and an operating range from 0 to +40 °C, the unit stays safe and reliable in typical indoor industrial environments without added enclosure requirements. The 6500 K cold-white light and non-dimmable operation provide consistent visibility for wayfinding and safety-critical areas, while screw-terminal wiring simplifies field connections and maintenance. Additionally, the insert integrates smoothly with Busch-Duro 2000 SI and Reflex SI design ranges, supporting scalable, modular lighting schemes. Compliance with RoHS and REACH further reduces procurement risk for regulated facilities.
Get a Quick Quote for a ABB 2CKA001510A0013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001510A0013?
Enquire Now
FAQs
Begin by confirming the flush-mounted mounting plate is present and compatible with Busch-iceLight wall or ceiling modules Type 2068/xx. Connect to 230 V AC via screw terminals on the primary side, following the included wiring diagram EN 2067_b. Ensure SELV secondary circuit connections are correct and secure. The unit is designed for a simple drop-in fit within the designated enclosure, minimizing rework and downtime during retrofit projects.
The insert operates at 230 V AC with a frequency of 50/60 Hz, using a single LED rated for 6500 K cold white light. It consumes 0.15 W system power and 40 mA on the secondary circuit, with SELV isolation for safety. The device is non-dimmable and rated IP20, suitable for indoor environments up to +40 °C, which supports stable performance and low maintenance in standard facilities.
Yes. The compact, flush-mounted design is ideal for corridors, stairwells, and signage within industrial spaces. Its IP20 rating and robust 0–40 °C operating range ensure dependable operation in typical indoor environments, while the 6500 K color and steady 1-LED output provide uniform night illumination that enhances safety without excessive energy use.
The product includes CE Declaration of Conformity, RoHS compliance, and REACH Declaration, along with WEEE categorization for small equipment. These certifications reduce regulatory risk for procurement and help ensure end-to-end compliance in regulated facilities and multinational projects.
The night light insert offers a low power draw (0.15 W) and long-life LED performance, delivering ongoing energy savings and reduced maintenance across facilities with extensive night-light usage. Its straightforward installation and compatibility with Busch lighting families streamline commissioning and future retrofits, improving total cost of ownership and return on investment for large-scale deployments.
