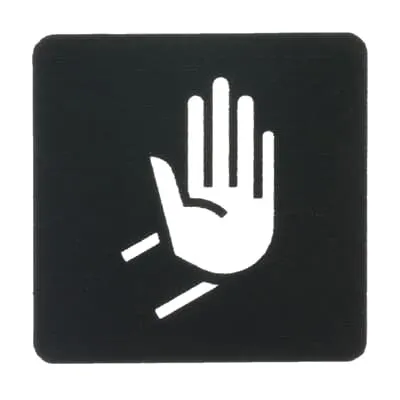

ABB 2CKA001714A0317 Piktogram Decor Element - IP20
Part Number: 2CKA001714A0317
Quick Summary
Piktogram Decor element is a labeling accessory for ABB luminaires and emergency lighting installations. Finding the right pictogram quickly can delay projects and risk non-compliance. The part carries CE declarations along with RoHS and REACH statements, and IP20 protection for indoor use. Designed for rapid installation in standard modular lighting assemblies, it fits neatly with ABB's accessory cover and other luminaire components. In practice, the compact 43.3 mm square pictogram improves readability, reduces labeling errors, and supports regulatory readiness across EU markets. For procurement teams and engineers, it offers a reliable, scalable solution that simplifies compliance while keeping installation timelines on track.
Product Information
Extended Description
2CKA001714A0317 ABB: For 2068/14-xxx Size of pictogram: 43.3 x 43.3 mm. Material: Plastic foil
Modular Components Included
Accessory Cover
Degree of Protection
IP20
Light Distribution Type
Asymmetric | Diffuser Lens | Optic | Panel
Reflector Type
Matt
Light Direction
Direct | Indirect
Material
Thermoplastic
Product Net Width
43.3 mm
Product Net Height
43.3 mm
Product Net Depth / Length
0.2 mm
Product Net Weight
0.42 g
RoHS Information
Product Declaration.PDF [EN] 2145/51-19
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
Product Declaration.PDF [EN] 2145/51-19
ETIM 9
EC002558 - Light technical accessories/spare parts for luminaires
eClass
V11.0 : 27111125
Feature: Modular Components Included—Accessory Cover is included, enabling quick retrofits and reducing procurement steps. Business Impact: Speeds up on-site assembly and lowers labor costs by eliminating the need for separate parts. Application: Fits seamlessly into ABB luminaire kits, allowing a complete pictogram retrofit with a single part. Feature: IP20 Degree of Protection. Business Impact: Delivers reliable indoor performance and helps meet facility standards, reducing risk of dust ingress. Application: Ideal for hallways, control rooms, and other indoor luminaires where labeling clarity is essential. Feature: Light Distribution Options and Matt Reflector. Business Impact: Tailors illumination around the pictogram to boost visibility and minimize glare. Application: Suitable for modular fixtures requiring precise symbol presentation. Feature: Thermoplastic, 43.3 mm footprint, 0.2 mm depth, 0.42 g weight. Business Impact: Lightweight and space-efficient, simplifying handling during installation and maintenance. Application: Fits standard 43.3 mm pictogram slots on panels and enclosures. Feature: Compliance Declarations and WEEE note. Business Impact: Minimizes regulatory risk, reduces customs issues, and supports sustainability reporting. Application: Valuable for EU-wide procurement and compliance documentation. Feature: ETIM and eClass classifications. Business Impact: Improves cataloging and procurement system searchability, aiding sourcing decisions.
Get a Quick Quote for a ABB 2CKA001714A0317
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001714A0317?
Enquire Now
FAQs
The Piktogram Decor Element is designed as an accessory cover included with ABB luminaires. For installation, verify the 43.3 mm square area, remove any existing pictogram cover, and attach the Decor Element to the modular lighting assembly. Ensure IP20 protection is maintained and confirm CE/RoHS/REACH declarations are accessible for regulatory documentation. This minimizes downtime and supports a clean retrofit with standard ABB components.
Key specifications include a 43.3 x 43.3 mm footprint, a light-weight 0.42 g thermoplastic body, and an IP20 degree of protection. The product supports multiple light distribution options (Asymmetric, Diffuser Lens, Optic, Panel) with a Matt reflector finish. These attributes ensure clear symbol presentation without compromising indoor lighting performance and assembly simplicity.
Recommended for indoor ABB luminaires and emergency lighting panels in commercial and industrial environments. It suits corridors, control rooms, stairwells, and other spaces needing standardized pictograms for safety and navigation. Its compact size and fast-install capable design make it ideal for retrofit projects and new builds that require compliant labeling without adding significant footprint.
This decor element carries CE declarations, RoHS compliance, and REACH declarations, along with a WEEE category noting it is not within WEEE scope. These certifications support market access across the EU, ensure substances in the part are within regulatory limits, and simplify documentation for sustainability reporting and regulatory audits.
ROI benefits come from reduced installation time, fewer labeling errors, and simplified procurement with an all-in-one pictogram kit. Maintenance is minimal due to the lightweight thermoplastic construction and IP20 indoor suitability. Ongoing value is achieved through consistent visual signaling, easier asset management, and smoother compliance auditing throughout the product lifecycle.
