2CKA001799A0543
Part Number: 2CKA001799A0543
Product Information
Extended Description

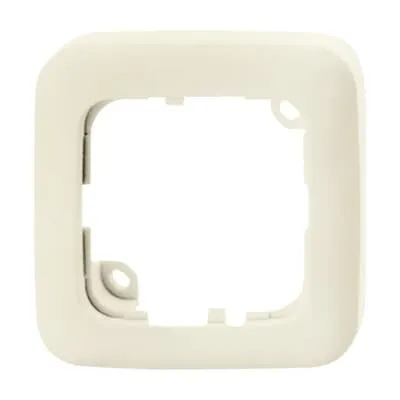

2CKA001799A0543 ABB: Housing for accommodating flush-mounted push-button 42 V. For insert 2031 flush-mounted.
Mounting Type
Surface Mounted
Mounting Orientation
Horizontal | Vertical
Modular Components Included
Surface Mounting Box
Degree of Protection
IP20
Number of Gangs
1
Opening Shape
Angular
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
25 mm
Product Net Weight
25 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_1706-212
RoHS Information
Product Declaration.PDF [EN] 1706-212
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
Product Declaration.PDF [EN] 1706-212
ETIM 9
EC000080 - Surface mounted box for flush-mounted switching equipment
eClass
V11.0 : 27144003
