2CKA002011A6219
Part Number: 2CKA002011A6219
Product Information
Extended Description

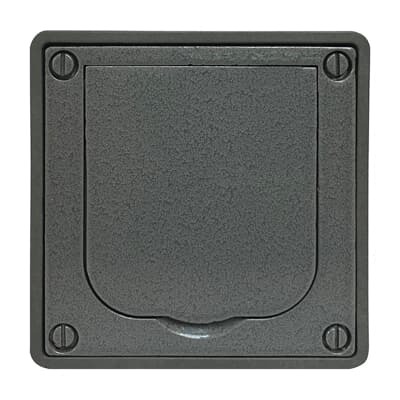

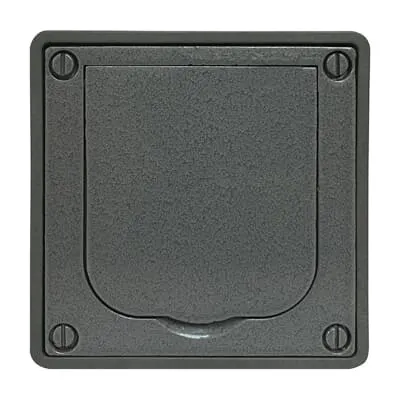

2CKA002011A6219 ABB: Upper part of housing and hinged lid made of diecast aluminium.
Installation housing made from extra-durable high-performance plastic.
With 2 M 20 entries.
Wall-flush installation.
Not suitable for hollow wall installation
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Mounting Position
Wall-flush installation
Modular Components Included
Complete Device
Degree of Protection
IP41
Function
wall installation | with enhanced contact protection
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Connection Type
Plug Clamp
Socket Outlet Type
Protective Contact (SCHUKO)
Terminal Type
Screwless Terminals
Protection Cap Type
Hinged Lid
Safety Function Option
Safety Shutter
Short-Circuit Current Rating (SCCR)
0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 Hz
Surface Finishing
Lacquered | Glossy
Material
Aluminium
Label Space Provided
No
RAL Number
Similar to RAL 9006
Color
grey
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
60.5 mm
Product Net Weight
259.5 g
Built-In Depth (t2)
31 mm
Dimension Diagram
Dimension drawing [EN] m_1705u_2
RoHS Information
Product Declaration.PDF [EN] 20 EFDB2-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 20 EFDB2-500
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
