2CKA002013A5290
Part Number: 2CKA002013A5290
Product Information
Extended Description

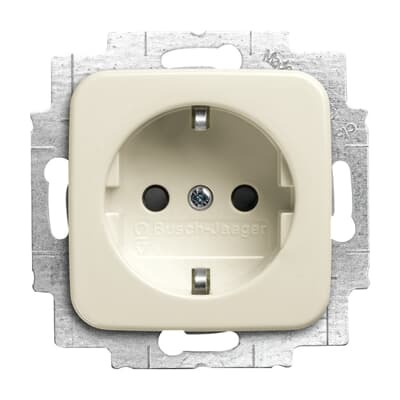

2CKA002013A5290 ABB: Shuttered. With screwless terminals. DP (2 P + E) with separate connection cables for switch contact. with LED,
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Function
with enhanced contact protection
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Lamp Type
Night light; LED
Socket Outlet Type
Protective Contact (SCHUKO)
Lamp Color
White
Terminal Type
Screwless Terminals
Safety Function Option
Safety Shutter
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50/60 Hz
Power Supply Type
Supplementary
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
47.5 mm
Product Net Weight
89 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_20eucBLI-212
RoHS Information
Product Declaration.PDF [EN] 20 EUCBLI-212
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 20 EUCBLI-212
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
