2CKA002013A5315
Part Number: 2CKA002013A5315
Product Information
Extended Description

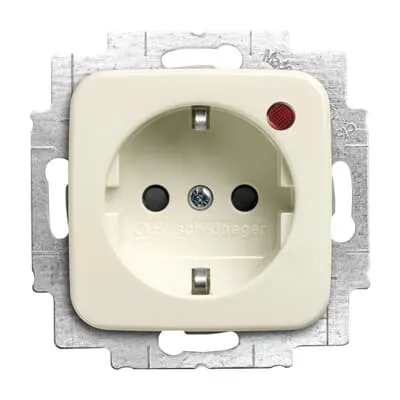

2CKA002013A5315 ABB: Shuttered. With screw-type terminals. DP (2 P + E) With integrated and external signalling contact. Device protection for technical sensitive equipment such as computer, entertainment electronics and building management systems. Effectively reduces overvoltage peaks occurring between the sub-distribution switch board and SCHUKO® socket outlet. Arrestor test class: classification Type 2 ISN = 5 kA
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 2310 EUGL/VA-XXX-11 2310 EUGL/VAB-XXX
Wiring Diagram
Connection diagramm [EN] 2310eugl_va-24
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Function
with overvoltage protection | with enhanced contact protection
Arrester Class
II
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Lamp Type
Neon lamp
Socket Outlet Type
Protective Contact (SCHUKO)
Lamp Color
Red
Terminal Type
Screw Terminals
Safety Function Option
Safety Shutter
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 Hz
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
47 mm
Product Net Weight
97 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2310eugl_va-212
RoHS Information
Product Declaration.PDF [EN] 2310 EUGL/VAB-212
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2310 EUGL/VAB-212
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
