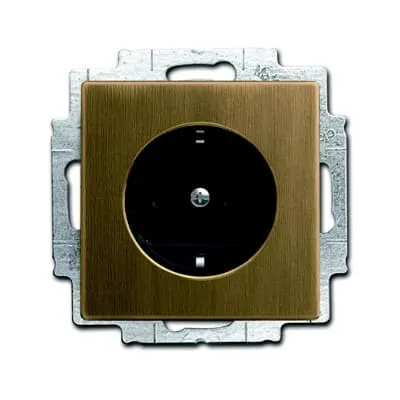

2CKA002013A5399
Part Number: 2CKA002013A5399
Product Information
Extended Description
2CKA002013A5399 ABB: with separate connection cables for switch contact. with LED, Shuttered. DP (2 P + E)
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Function
with enhanced contact protection
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Lamp Type
Night light; LED
Socket Outlet Type
Protective Contact (SCHUKO)
Lamp Color
White
Terminal Type
Screwless Terminals
Safety Function Option
Safety Shutter
Short-Circuit Current Rating (SCCR)
0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50/60 Hz
Power Supply Type
Supplementary
Design Range
Platform 63 | Busch-Dynasty
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
Label Space Provided
No
Color
antique brass
Product Net Weight
114.5 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 20 EUCBLI-840-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 20 EUCBLI-840-500
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
