2CKA002099A0243
Part Number: 2CKA002099A0243
Product Information
Extended Description

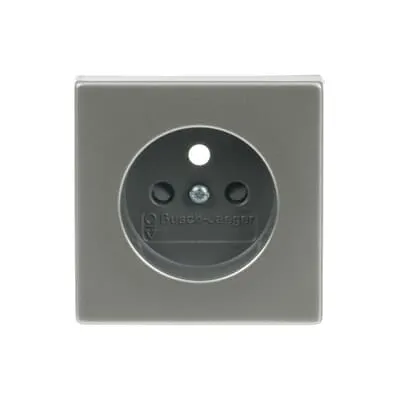

2CKA002099A0243 ABB: For socket outlet insert 20 M-500. Material stainless steel. Anti fingerprint.
Type of Fastening
Mounting with Screw
Modular Components Included
Cover Plate
Degree of Protection
IP20
Function
with enhanced contact protection
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Socket Outlet Type
Earthing Pin
Terminal Type
Screw Terminals
Safety Function Option
Safety Shutter
Short-Circuit Current Rating (SCCR)
0 kA
Rated Current (In)
16 A
Design Range
Pure Stainless Steel
Surface Finishing
Untreated | Matt | Anti fingerprint coating
Material
Stainless steel
Label Space Provided
No
Color
stainless steel
Product Net Width
63 mm
Product Net Height
63 mm
Product Net Depth / Length
28.3 mm
Product Net Weight
33 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2399 UCKS-866
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
Product Declaration.PDF [EN] 2399 UCKS-866
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
