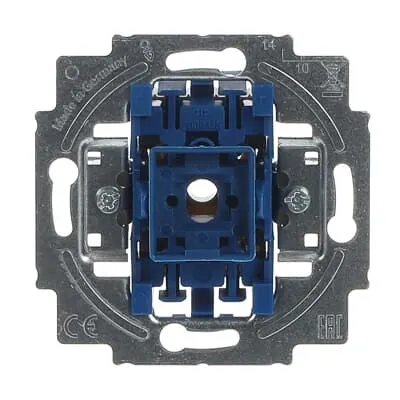

ABB 2CKA002099A0305 Switch Insert Rocker - IP20
Part Number: 2CKA002099A0305
Quick Summary
ABB 2CKA002099A0305 Switch Insert Rocker performs two-way lighting control in flush-mounted wall installations. Engineers often face challenges with reliable illumination, clean wiring diagrams, and modular upgrades that disrupt productive panels. With CE conformity, RoHS compliance, and IP20 protection, this module meets essential regulatory and safety requirements in controlled environments. Designed for panel builders, it integrates with Busch-Duro 2000 SI and Reflex SI frames for scalable, cost-efficient installations and long-term reliability in industrial settings. Its compact footprint and screwless terminals speed wiring and reduce field service time. Together, these features translate into lower risk, faster project delivery, and improved uptime for critical lighting control applications.
Product Information
Extended Description
2CKA002099A0305 ABB: Bulk Pack incl. 100pcs.
Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Wiring Diagram
Connection diagramm [EN] 2000_6u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
388 mm
Product Net Height
171 mm
Product Net Depth / Length
393 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] ROCKER SWITCH MECHANISM (2000/6)
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 2000_6 US BULK
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 US
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Flush Mounted installation provides a clean, space-saving profile that fits standard wall boxes and panel cutouts, improving panel aesthetics and reducing installation depth. Business impact: faster fit-up, easier future upgrades, and reduced rework. Application: flush-mounted switch inserts in industrial control panels. Two-way wiring configuration with a single rocker simplifies circuits and minimizes wiring complexity, delivering reliable control with fewer components. Business impact: reduced wiring errors and lower maintenance costs. Application: office and manufacturing floor lighting circuits. Screwless terminals enable quick terminations, lower torque requirements, and improved reliability under vibration. Business impact: faster commissioning and longer-term uptime. Illumination option utilizes an accessory powered by the connected load, providing visual feedback without additional power wiring. Business impact: enhanced usability and safer identification of status in dim environments. IP20 rated enclosure and 250 V/10 A capability deliver safe operation in controlled environments with standard loads. Business impact: regulatory compliance and protection against dust intrusion in production spaces. Compatibility with Busch-Duro 2000 SI, Reflex SI, and other ABB frames supports scalable integrations in mixed-frame environments. Application: modular panel systems across industries. The design uses screw terminals and a robust rocker actuator to resist field wear, ensuring durable operation in harsh industrial settings. Business impact: lower replacement rates and predictable lifecycle costs. Industry context: the module aligns with ETIM and eClass classifications for precise procurement and specification discipline.
Get a Quick Quote for a ABB 2CKA002099A0305
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA002099A0305?
Enquire Now
FAQs
The switch insert is designed for flush-mounted installation with mounting via claws or screws. This provides a clean panel appearance while ensuring secure fixation in standard backboxes. The flush-mounted approach also simplifies future upgrades by preserving space for additional modules and maintaining consistent panel aesthetics.
Illumination is optional and can be added using a dedicated Illumination set as an accessory. The illumination set is powered by the connected load, so no separate power supply is required. Ensure the connected load supports illumination current and that the overall load remains within the 10 A rating.
The switch insert is rated for 250 V and 10 A, suitable for common lighting circuits in industrial settings. It features IP20 protection for basic ingress protection and uses screwless terminals to improve termination reliability and reduce wiring errors. The device adheres to CE, RoHS, and REACH requirements, supporting regulatory compliance in most regions.
This switch insert is compatible with standard ABB frames such as Busch-Duro 2000 SI and Reflex SI, among others. Compatibility with these frames enables seamless integration into existing panel architectures, reduces installation time, and supports scalable designs across multiple rooms or facilities.
The combination of a robust rocker mechanism, screwless terminals, and optional illumination reduces field maintenance and wiring-related failures. The predictable lifecycle, compatibility with common ABB frames, and CE/RoHS/REACH compliance contribute to lower total cost of ownership and faster project delivery for lighting control applications.
