2CKA002113A0264
Part Number: 2CKA002113A0264
Product Information
Extended Description

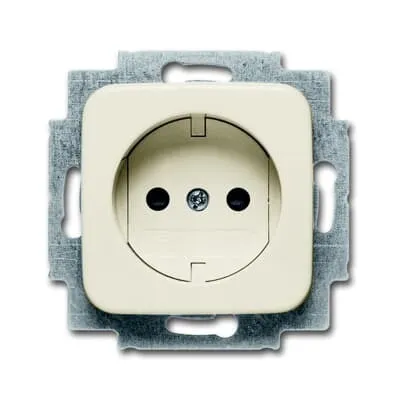

2CKA002113A0264 ABB: With screw-type terminals. DP Suitable for 1gang flush-mounted boxes.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Number of Poles
2P
Number of Phases
1
Number of Gangs
1
Socket Outlet Type
Socket Outlets Without Protective Contact
Terminal Type
Screw Terminals
Short-Circuit Current Rating (SCCR)
0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 Hz
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear
Surface Finishing
Untreated | Glossy
Material
Duroplast
Label Space Provided
No
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
35 mm
Product Net Weight
56.5 g
Built-In Depth (t2)
31 mm
RoHS Information
Product Declaration.PDF [EN] 2300-01 UC-212-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2300-01 UC-212-500
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
