2CKA002190A0218
Part Number: 2CKA002190A0218
Product Information
Extended Description

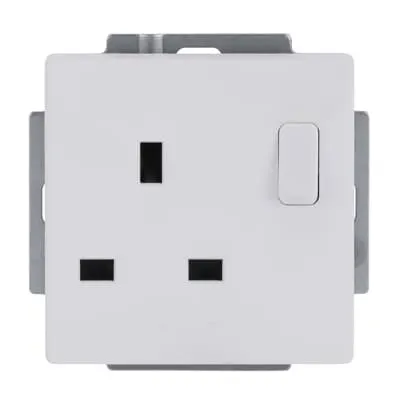

2CKA002190A0218 ABB: 1gang With screw-type terminals. SP switched Without claws. Only for mounting in flush-mounted wallboxes
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw | Without Claw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Socket Outlet Type
Power Socket Outlets - British acc. to BS1363
Terminal Type
Screw Terminals
Short-Circuit Current Rating (SCCR)
0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
13 A
Rated Frequency (f)
50 Hz
Design Range
Platform 63 | future linear | Busch-axcent | carat
Design Range Variant
future linear - matt | Busch-axcent | Busch-axcent pur
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 9016
Color
studio white matt
Control Element Color
White
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
39.7 mm
Product Net Weight
78 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2190 EUC-884
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2190 EUC-884
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
