2CKA002310A0159
Part Number: 2CKA002310A0159
Product Information
Extended Description

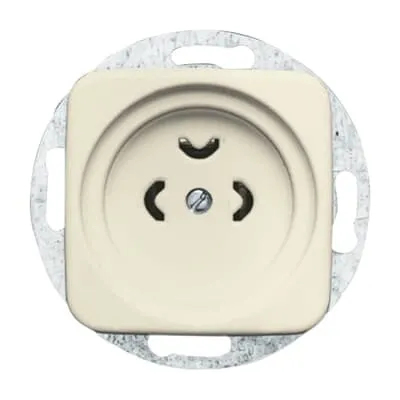

2CKA002310A0159 ABB: Busch-Duro 2000® SI
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Degree of Protection
IP20
Number of Poles
2P+PE
Number of Phases
1
Number of Gangs
1
Socket Outlet Type
TERKO
Terminal Type
Screw Terminals
Short-Circuit Current Rating (SCCR)
0 kA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 Hz
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
RAL Number
RAL 1013 - Oyster White
Color
white
Product Net Width
0.009 m
Product Net Height
0.085 m
Product Net Depth / Length
0.068 m
Product Net Weight
0.086 kg
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2334uc-212
RoHS Information
Product Declaration.PDF [EN] 2334 UC-212
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
cdbf0cdb-ba0d-41c4-85e7-b376451f0f0c Czech Republic (CZ)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2334 UC-212
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
