2CKA003116A0665
Part Number: 2CKA003116A0665
Product Information
Extended Description

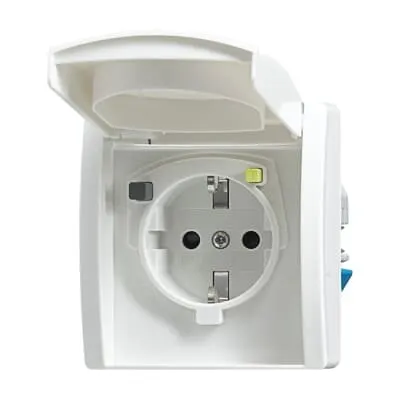

2CKA003116A0665 ABB: Flush-mounted SCHUKOMAT
DP cut off (P,N) Without PE monitoring.
Rated fault current: 30 mA.
Rated frequency: 45-60 Hz.
Complete cover, not combinable.
With output terminals for connecting and protecting downsream SCHUKO® socket outlets.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 3120 EUCB-XXX 3120 EWB-XX 3120 EUGB-XX 3151 UC-XX
Wiring Diagram
Installation and Operating Instructions (.PDF) [EN] 3120 EUCB-XXX 3120 EWB-XX 3120 EUGB-XX 3151 UC-XX
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -25 ... +40 °C
Degree of Protection
IP44
Function
with enhanced contact protection | with Residual Current Circuit Breaker
Number of Poles
2P+PE
Number of Phases
1
Number of RCDs 30mA
1
Number of Gangs
1
Socket Outlet Type
Protective Contact (SCHUKO)
Terminal Type
Screwless Terminals
Safety Function Option
Safety Shutter
Short-Circuit Current Rating (SCCR)
3 kA
Rated Voltage (Ur)
230 V
Rated Current (In)
16 A
Rated Residual Current
30 mA
Rated Frequency (f)
50/60 Hz
Design Range
Allwetter 44 (IP 44)
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
Label Space Provided
No
RAL Number
Similar to RAL 9010
Color
alpine white
Product Net Width
76.4 mm
Product Net Height
83 mm
Product Net Depth / Length
59.6 mm
Product Net Weight
177.5 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 3120 EUGB-44
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 3120 EUGB-44
ETIM 9
EC000125 - Socket outlet
eClass
V11.0 : 27144042
