2CKA006115A0504
Part Number: 2CKA006115A0504
Product Information
Extended Description

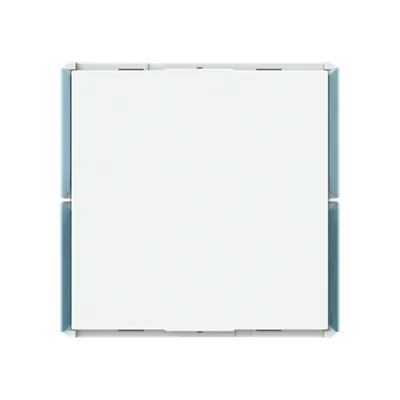

2CKA006115A0504 ABB: Freely configurable multifunction keypad 1- up to 4-fold with acoustic feedback. Communication over separat bus coupler unit (KNX: BA/U1.0.xx, free@home: BAU-F-0.xx). Operation via tapping or swiping of the parametrized functions, e.g., switching, dimming, blind/shutter control, scene.
- Primary function
- Integrated temperature sensor
- Buzzer for acoustic feedback
- Support of functions/status through innovative RGB light guide concept
- Day/night mode
- Orientation light
- Alarm function supported over light guide and acoustic feedback, e.g. 5 logic channels for KNX
- Light scene actuator
- Logic gates, etc.
- Sequencer
- Staircase function
- KNX Data Secure compatible
Available for the design ranges:
- future®
- future® linear
- solo®
- Busch-axcent®
- Busch-axcent® pur
- carat®, Busch-dynasty®
- pure stainless steel
- Impressivo
Optional Removal protection: CSE/U0.1.xx.CK
Number of bus subscribers: 1
Mounting Type
Flush Mounted
Modular Components Included
Electronic Control Element    Â
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of LEDs
8
Number of Buttons
4
Number of Actuation Points
4
Compatible Bus Systems
KNX (TP) | free@home (TP)
Product Range
flexTronics | free@home | KNX
Connection Type
Pin
Security Standard
KNX Data Secure
Design Range
Trevion | Platform 63 | future linear | Busch-axcent | Busch-Dynasty | carat | solo | Impressivo
Design Range Variant
future | future linear | Busch-axcent | Busch-axcent pur
Material
Thermoplastic
Color
white
Product Net Width
70 mm
Product Net Height
64.24 mm
Product Net Depth / Length
22.1 mm
Product Net Weight
27.1 g
Built-In Depth (t2)
33 mm
E-Number (Finland)
2815749
E-Number (Norway)
4544046
E-Number (Sweden)
1740456
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] Trevion® 63
RoHS Information
RoHS - Product Declaration (.PDF) [EN] KK/U4.63.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] KK/U4.63.1
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
