2CKA006115A0507
Part Number: 2CKA006115A0507
Product Information
Extended Description

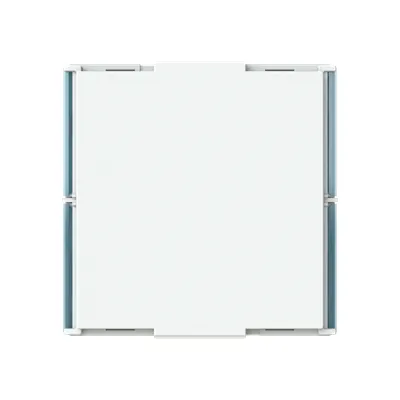

2CKA006115A0507 ABB: Freely configurable multifunction keypad 1- up to 4-fold with acoustic feedback for the ranges:
ABB
- sidus
Communication over separate bus coupler/FM-units:
- For KNX: BA/U1.0.21
- For free@home: BAU-F-0.1-508
Operation via tapping or swiping of the parameterized functions, e.g.:
- Switching
- Dimming
- Blind/shutter
- Scene
Primary function
Integrated temperature sensor.
Buzzer for acoustic feedback
Support of functions/status through innovative RGB light guide concept.
Day/night mode
Orientation light
Alarm function supported over light guide and acoustic feedback, e.g..
5 logic channels for KNX
- light scene actuator,
- logic gates, etc.)
- Sequencer
- Staircase function
- KNX Data Secure compatible
Number of bus subscribers: 1
Mounting Type
Flush Mounted
Modular Components Included
Electronic Control Element    Â
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of LEDs
8
Number of Buttons
4
Number of Actuation Points
4
Compatible Bus Systems
KNX (TP) | free@home (TP)
Product Range
flexTronics | free@home | KNX
Connection Type
Pin
Design Range
SIDUS® Touch
Material
Thermoplastic
Color
white
Product Net Width
54.87 mm
Product Net Height
54.8 mm
Product Net Depth / Length
22 mm
Product Net Weight
28 g
Built-In Depth (t2)
33 mm
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SIDUS® TOUCH
RoHS Information
RoHS - Product Declaration (.PDF) [EN] KK/U4.60.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] KK/U4.60.1
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
