2CKA006117A0222
Part Number: 2CKA006117A0222
Product Information
Extended Description

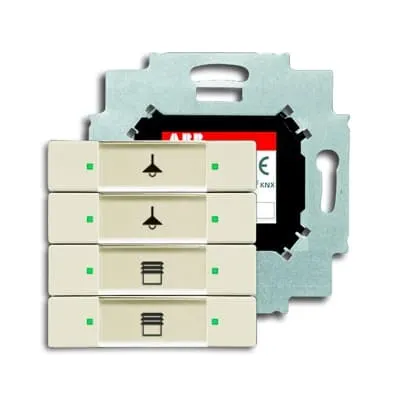

2CKA006117A0222 ABB: For ABB i-bus® KNX With labelling field. Transparent labelling sheet with standard symbols included in delivery.
Instructions and Manuals
DEBJE-ba_73_1_7423_6125_26_27-01_500-Man
Mounting Type
Flush Mounted
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
DEBJE-th_KNX_Bedienelemente_ABB_NL_V1-Spec
Number of Actuation Points
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Platform 63 | future linear | solo | carat | Busch-Dynasty
Design Range Variant
future | future linear
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
RAL Number
Similar to RAL 1013
Color
ivory white
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
32 mm
Product Net Weight
75 g
Built-In Depth (t2)
22 mm
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of conformity (.PDF) [EN] 6127/01-82-500
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
