2CKA006120A0081
Part Number: 2CKA006120A0081
Product Information
Extended Description

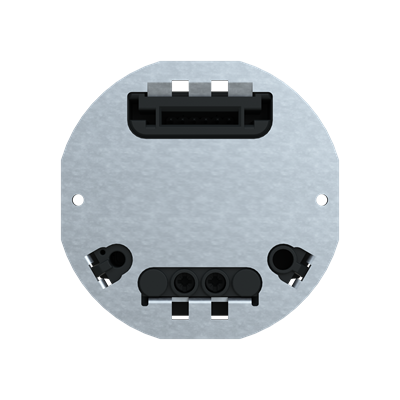

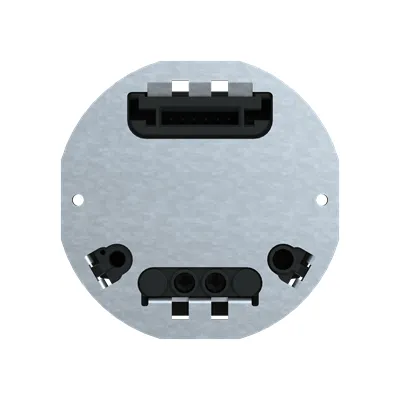

2CKA006120A0081 ABB: KNX bus coupler unit for keypad 1- up to 4-fold devices:
- KK/U4.60.xx
Bus connection via enclosed terminal block.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Connections
Number of connections sensor/actuator: 1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Connection Type
Pin
Terminal Type
Bus Connection
Rated Voltage (Ur)
24 V
Rated Current (In)
24 mA
Design Range
SIDUS® Touch | SIDUS
Product Net Width
71 mm
Product Net Height
81.27 mm
Product Net Depth / Length
32.7 mm
Product Net Weight
45 g
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SIDUS® TOUCH
RoHS Information
RoHS - Product Declaration (.PDF) [EN] BA/U1.0.21
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] BA/U1.0.21
ETIM 9
EC000634 - Bus coupler for bus system
eClass
V11.0 : 27143108
