2CKA006132A0306
Part Number: 2CKA006132A0306
Product Information
Extended Description

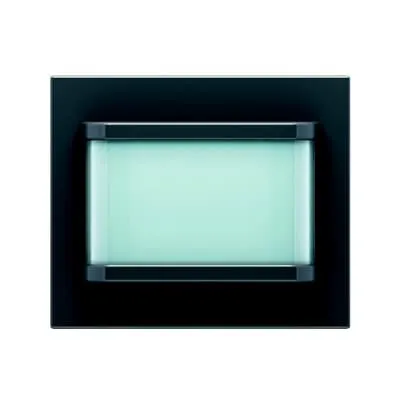

2CKA006132A0306 ABB: For ABB i-bus® KNX Movement detector with up to 4 channels.
Instructions and Manuals
DEBJE-0173-1-7798
Mounting Type
Flush Mounted
Mounting Position
vertical
Mounting Height
Optimum 1.1 m
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6122/20-981-500
Number of Channels
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Minimum Switching Time
Switch-On 10 second [unit of time]
Number of Batteries
0
Sensor Detection Range
Horizontal 0 ... 180 °
Design Range
Millenium
Material
Thermoplastic
Color
shadow
Product Net Width
0.098 m
Product Net Height
0.103 m
Product Net Depth / Length
0.047 m
Product Net Weight
47 g
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6122/20-981-500
ETIM 9
EC001582 - Movement sensor for bus system
eClass
V11.0 : 27143144
