2CKA006132A0319
Part Number: 2CKA006132A0319
Product Information
Extended Description

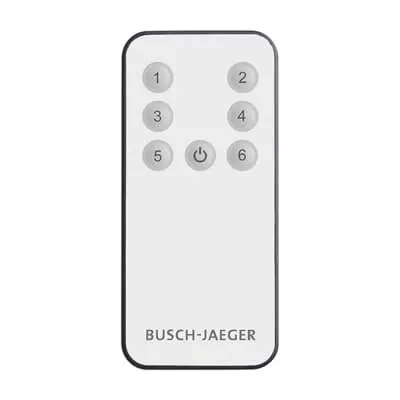

2CKA006132A0319 ABB: For Busch-Watchdog 220 MasterLINE KNX premium. The functions can be freely assigned. With coded transmission signal. Power supply: lithium button cell battery Type CR2025. Battery life: typically 2 years.
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP40
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Battery Chemical Composition
Lithium
Battery Size
CR2025
Battery Type
Button Cell
Battery Weight
2.5 g
Number of Batteries
1
Battery Integration Type
Replaceable Non-Rechargeable
Rated Voltage (Ur)
3 V
Auxiliary Voltage AC/DC
3 V AC/DC
Color
grey / anthracite
Product Net Width
40 mm
Product Net Height
86 mm
Product Net Depth / Length
7 mm
Product Net Weight
18 g
RoHS Information
Product Declaration.PDF [EN] 6179
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6179
ETIM 9
EC001580 - Accessories/spare parts for movement sensor
eClass
V11.0 : 27144092
