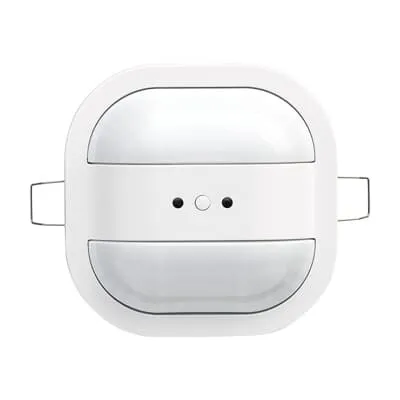

2CKA006132A0333
Part Number: 2CKA006132A0333
Product Information
Extended Description
2CKA006132A0333 ABB: Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.
Mounting Type
Surface Mounted | Flush Mounted
Mounting Position
Ceiling
Mounting Height
Optimum 2 ... 4 m
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [EN] 6131/XX Presence dector
Measuring Range
0 ... 8
Number of Channels
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Minimum Switching Time
Switch-On 10 second [unit of time]
Sensor Detection Range
360 ° | Frontal 8 m | Lateral 12 m
Surface Finishing
Untreated | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9016
Color
studio white matt
Product Net Width
91 mm
Product Net Height
91 mm
Product Net Depth / Length
45 mm
Product Net Weight
96 g
Built-In Depth (t2)
22 mm
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] Presence Detector KNX
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products BJE
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
FSC Recycled Paperboard - 90 %
Improved Energy Efficiency for Customers
Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset
Extended Product Lifetime
Product Upgradability
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] 6131/XX-XXX-(500)
RoHS Information
Product Declaration.PDF [EN] 6131/30-24
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6131/30-24
ETIM 9
EC001582 - Movement sensor for bus system
eClass
V11.0 : 27143144
