2CKA006133A0215
Part Number: 2CKA006133A0215
Product Information
Extended Description

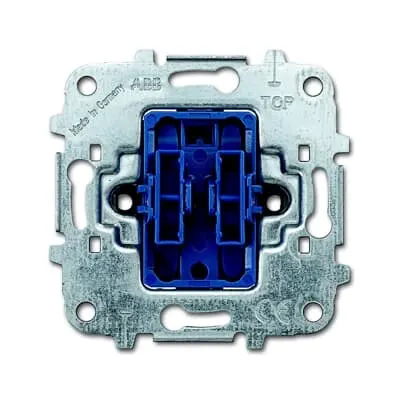

2CKA006133A0215 ABB: For contacting conventional 2gang rocker switches. With middle position. The following range can be used: Busch-Duro 2000® SI/SI Linear, Reflex SI/SI Linear, future® linear, alpha, solo®, Busch-axcent®, carat® and pure stainless steel. The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -25 ... +45 °C
Degree of Protection
IP20
Number of Inputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Product Net Width
74 mm
Product Net Height
74 mm
Product Net Depth / Length
37 mm
Product Net Weight
55 g
Built-In Depth (t2)
27.5 mm
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e376460c-cd29-4d59-bfba-ad99c6e3048c Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6108/02-509
ETIM 9
EC002466 - Touch sensor connector for bus system
