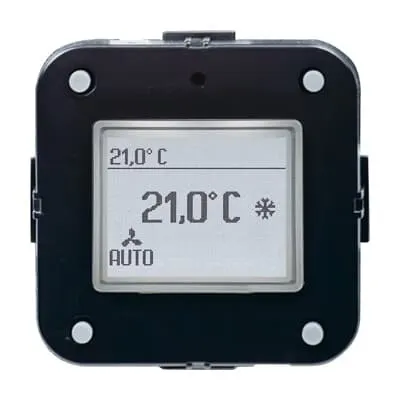

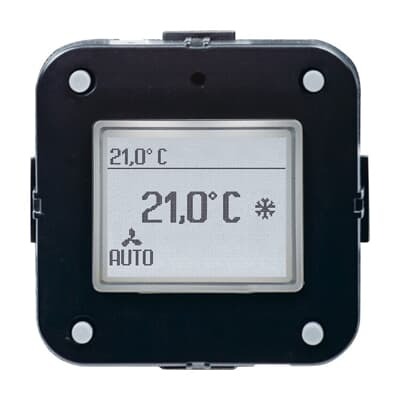

ABB 2CKA006134A0314 Room Temperature Controller - IP20
Part Number: 2CKA006134A0314
Quick Summary
Room Temperature Controller insert 24 V KNX (TP) is used to regulate heating and ventilation in building automation applications. This device addresses the common challenge of balancing occupant comfort with energy efficiency in commercial spaces by offering flexible sensor inputs and precise setpoint control. It carries CE conformity and dependable IP20 protection, with KNX TP bus compatibility that ensures reliable integration into existing control networks. The integrated temperature sensor and local display enable quick commissioning and on-site adjustment, while the master/slave configuration supports scalable installations. With flush mounting and a robust power interface, it delivers consistent performance within standard industrial environments, helping you reduce energy waste while maintaining precise climate control.
Product Information
Extended Description
2CKA006134A0314 ABB: Control element with room thermostat function for triggering the heating, ventilation and fan-coil actuators. With universal input with: - max. of 5 binary inputs - 4 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V - 2 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V and an external temperature sensor PT1000 / 6226T/ DP4-T-1. With display of set-value temperature. With integrated temperature sensor. Master/slave configuration. With base-load operation. The bus can be connected via enclosed terminal block. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6109/18
Maximum Number of Switching Outputs
33
Number of Digital Inputs
5
Number of Inputs
5
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Rated Voltage (Ur)
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Rated Current (In)
5 A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Matt
Material
Thermoplastic
Color
black
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
49 mm
Product Net Weight
78 g
Screen Size
1 in
RoHS Information
Product Declaration.PDF [EN] 6109/18
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
77837f38-8060-4c0f-b25b-34f07a8ca816 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6109/18
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
Feature Flexibility in sensing and inputs → Business impact: reduces installation complexity and hardware costs by supporting 5 digital inputs, 4 binary inputs, and 1 analog input for external sensors with 1-10 V/0-10 V, plus an integrated temperature sensor. Application: enables seamless integration with PT1000 or similar sensors for accurate zone control in KNX environments. Long-tail keywords: KNX room temperature controller, KNX TP input options, external sensor integration. Feature Display and on-site control → Business impact: 1 in display provides instant visibility of setpoint and measured temperature, accelerating commissioning and troubleshooting. Application: ideal for quick adjustments in offices, hotels, and commercial spaces where on-site visibility matters. Feature KNX TP bus connection → Business impact: straightforward network integration via enclosed terminal block, reducing wiring errors and commissioning time. Application: reliable bus-based control for heat, ventilation, and fan-coil actuators in retrofit and new-build projects. Feature Master/slave configuration and base-load operation → Business impact: supports scalable architectures and energy-efficient standby operation, lowering operating costs. Application: multi-zone installations with coordinated climate strategies in large facilities. Feature Power and output scalability → Business impact: 24 V auxiliary power with 5 A nominal current and up to 33 switching outputs supports complex HVAC wiring. Application: suitable for fan-coil, valve, and actuator control in mid to large KNX deployments. Feature Environmental and installation efficiency → Business impact: IP20 protection, -5 to +45 °C operation, and flush-mounted design simplify installation in indoor environments while maintaining reliability. Application: ideal for controlled spaces like server rooms, meeting areas, and retail spaces where discreet installations are required.
Get a Quick Quote for a ABB 2CKA006134A0314
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006134A0314?
Enquire Now
FAQs
To install in a KNX TP network, mount the flush-mounted insert and connect the device to the KNX bus via the enclosed terminal block. Provide 24 V supply, verify IP20 protection, and configure the device using your KNX programming tool. Ensure correct addressing for master/slave operation and test all digital and analog inputs during commissioning.
The unit supports five digital inputs, four binary inputs plus one analog input for external sensors (1-10 V/0-10 V) and an integrated temperature sensor, with optional PT1000/6226T/DP4-T-1 sensor connections. Configure inputs in the KNX programming tool and map them to heating, ventilation, or actuator signals to achieve precise climate control.
Yes. The room temperature controller is designed for KNX TP networks and can manage heating, ventilation, and fan-coil actuators. Its master/slave capability and base-load operation support scalable, energy-efficient climate management across multiple zones in office environments, improving comfort without sacrificing efficiency.
The device carries CE conformity and IP20 protection, with RoHS and REACH declarations. It’s designed for KNX TP bus systems and includes a CE Declaration of Conformity, WEEE/B2B classification, and SCIP registration, ensuring regulatory alignment for European installations.
ROI improves through energy savings from optimized space heating and ventilation and reduced waste due to precise setpoint control. Master/slave operation and base-load management enable scalable deployments with fewer actuators needed, while integrated sensing reduces external hardware. Expect measurable reductions in operating costs in mid- to large-scale KNX installations.
