2CKA006136A0200
Part Number: 2CKA006136A0200
Product Information
Extended Description

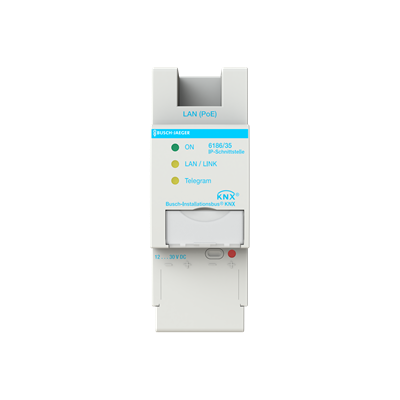

2CKA006136A0200 ABB: The IP interface is the interface between KNX installations and IP networks and operates according to KNXnet/IP specifications (tunelling). With the ETS, KNX devices can be programmed via LAN. For this and for further clients 5 tunnelling servers are available. The IP address of the 6186/35 can be permanently assigned or received by a DHCP server. The power is supplied via 12 - 30 V DC or alternatively via Power-over-Ethernet (poE).
Instructions and Manuals
Product manual (.PDF) [DE] 6186/33 6186/35
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [DE] IPS/S 3.1.1
Communication Interface
Ethernet
Number of LEDs
3
Compatible Bus Systems
KNX (TP) | KNX (IP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
PoE
Auxiliary Voltage AC/DC
12 ... 30 V DC
Surface Finishing
Matt
Housing Material
Plastic
Material
Plastic
RAL Number
RAL 7035 - Light Grey
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Replacement Product ID (NEW)
2CDG110177R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6186/35
ETIM 9
EC000674 - Interface for bus system
eClass
V11.0 : 27143102
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
