2CKA006136A0203
Part Number: 2CKA006136A0203
Product Information
Extended Description

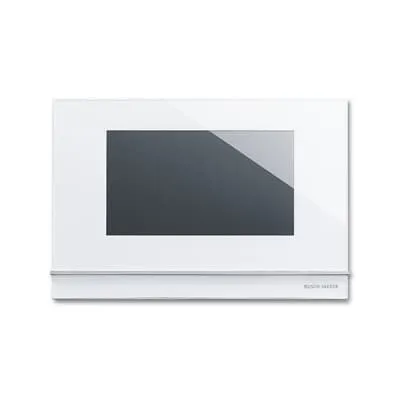

2CKA006136A0203 ABB: Free programmable KNX touch display as room-integrated controlling, signalling and regulating unit. To be used as indoor video station for the ABB-Welcome door communication system.
For the illustration and operation of the following KNX standard functions: - Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element With scene function, logic functions, presence simulation and time programs. Functions: - 480 KNX control elements - maximum 30 pages - 80 fault and alarm messages - 30 logic functions - 30 timers - presence simulation for 20 participants - 10 scene actuators - 1 RTC object Equipped with a hearing loop for coupling the audio signal into hearing aids. Page display with a maximum of 16 touch surfaces on one page. External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller. Consumer units: 15
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6136/07-XXX
Mounting Type
Flush Mounted | Surface Mounted
Mounting Position
horizontal
Mounting Height
Optimum 150 m
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.HTM) [DE] 6136/07-XXX
Compatible Bus Systems
KNX (TP) | Welcome
Product Range
KNX
Display Type
Colour
Number of Batteries
0
Rated Voltage (Ur)
20 ... 32 V
Auxiliary Voltage AC/DC
24 V DC
Housing Material
Plastic
Material
Glass
RAL Number
Similar to RAL 9016
Color
white
Product Net Width
246 mm
Product Net Height
165 mm
Product Net Depth / Length
25 mm
Product Net Weight
717 g
Built-In Depth (t2)
15 mm
Screen Size
7 in
Replacement Product ID (NEW)
2TMA310050W0001 | 2TMA310050W0002 | 2TMA310050W0003 | 2TMA310050W0004
RoHS Information
Product Declaration.PDF [EN] 6136/07-811
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6136/07-811
ETIM 9
EC000783 - Signalling and operation panel for bus system
eClass
V11.0 : 27143101
