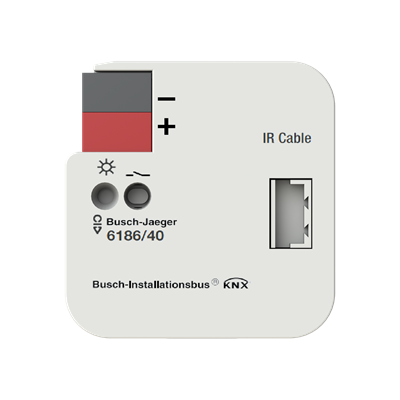

2CKA006136A0213
Part Number: 2CKA006136A0213
Product Information
Extended Description

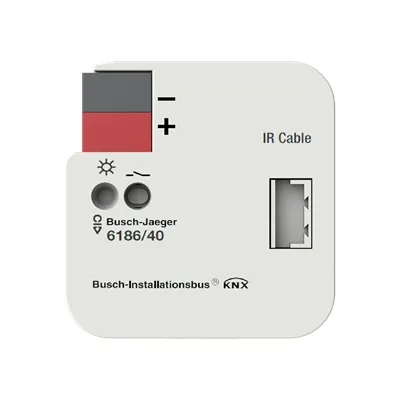

2CKA006136A0213 ABB: The Split Unit Gateway forms the interface between the KNX system and air-conditioning units of many manufacturers, so-called Split Units. the device converts the KNX telegrams into infrared commands and sends them to the Split Unit. The transmission unit of the enclosed cable is glued directly on the receiving unit of the Split Unit. The Split Unit then no longer receives commands from a remote control, but can be operated via any KNX sensors or also via a visualization. The operation of the device is started with the ETS a free ETS APP is available for selecting the Split Unit model. No auxiliary power supply necessary.
Instructions and Manuals
Product Manual (.PDF) [DE] SUG/U 1.1
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [DE] SUG/U 1.1
Communication Interface
IR-interface
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
30 V
Color
light grey
Product Net Width
12 mm
Product Net Height
39 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.02 kg
Replacement Product ID (NEW)
2CDG110207R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6186/40
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
