2CKA006136A0216
Part Number: 2CKA006136A0216
Product Information
Extended Description

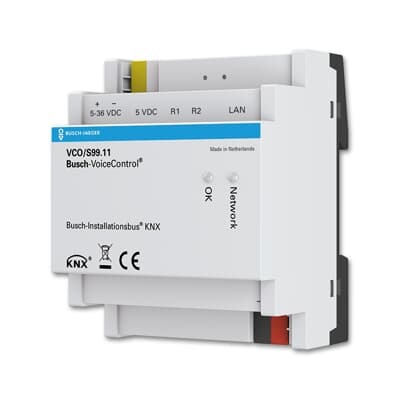

2CKA006136A0216 ABB: A certified voice control gateway for the combination of a KNX system with a voice control system. Acts as a gateway and guarantees that you can operate the KNX components in a house and query their status using Apple, Amazon or Google devices. This component makes it possible to operate the lighting, blind or room temperature controller using simple voice control. Up to 150 functions can be used. Busch-VoiceControl® is an official certified HomeKit accessory. Complete web-based commissioning. Compatible with ABB i-bus® KNX External power supply: 5-36 VDC (SELV).
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] VCO/S99.11
Mounting Type
DIN-Rail
Mounting Position
horizontal
Ambient Air Temperature
Operation 0 ... +70 °C
Degree of Protection
IP20
Communication Interface
Multiple interface
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Battery Weight
0 g
Rated Voltage (Ur)
5...36 V
Auxiliary Voltage AC/DC
5 V | 36 V AC/DC
Input Voltage (Uin)
24 V
Width in Number of Modular Spacings
4.0
Product Net Width
0.14 m
Product Net Height
0.227 m
Product Net Depth / Length
0.181 m
Product Net Weight
100 g
Replacement Product ID (NEW)
2CKA006136A0220
RoHS Information
Product Declaration.PDF [EN] VCO/S99.11
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] VCO/S99.11
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
