2CKA006136A0220
Part Number: 2CKA006136A0220
Product Information
Extended Description

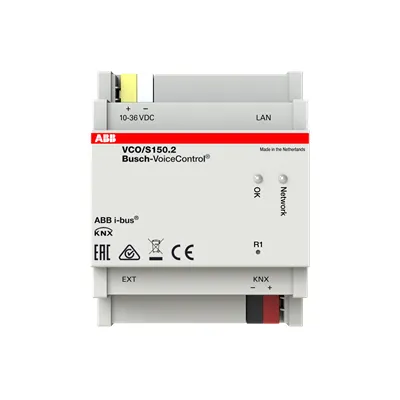

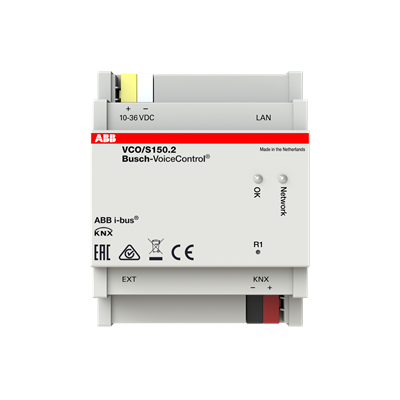

2CKA006136A0220 ABB: A certified voice control gateway for the combination of a KNX system with a voice control system. Acts as a gateway and guarantees that you can operate the KNX components in a house and query their status using Apple, Amazon or Google devices. This component makes it possible to operate the lighting, blind or room temperature controller using simple voice control. Up to 150 functions can be used. Busch-VoiceControl® is an official certified HomeKit accessory. Complete web-based commissioning. Compatible with ABB i-bus® KNX External power supply: 10-36 VDC (SELV).
Mounting Type
DIN-Rail
Mounting Position
horizontal
Ambient Air Temperature
Operation 0 ... +70 °C
Degree of Protection
IP20
Communication Interface
Ethernet
Number of LEDs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring | Ethernet
Connection Type
RJ45
Terminal Type
Bus Connection
Rated Voltage (Ur)
10 ... 36 V
Voltage Range
10 ... 30 V DC
Auxiliary Voltage AC/DC
10 ... 30 V DC
Input Voltage (Uin)
24 V DC
Power Loss
0 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
71.9 mm
Product Net Height
89.8 mm
Product Net Depth / Length
60 mm
Product Net Weight
126 g
Replaced Product ID (OLD)
2CKA006136A0217
E-Number (Finland)
2818965
E-Number (Sweden)
1740137
E-Number (Switzerland)
405830025
RoHS Information
Product Declaration.PDF [EN] VCO/S150.2
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] VCO/S150.2
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] VCO_S150.2
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
