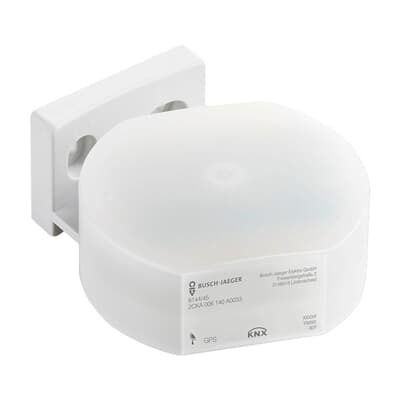

2CKA006140A0033
Part Number: 2CKA006140A0033
Product Information
Extended Description
2CKA006140A0033 ABB: For receiving and processing of the GPS signal, as well as measurement of brightness and temperature. The sensor measures the brightness and outside temperature and makes these available on the KNX bus. Also the time, the date and the geographical coordinates are transmitted to the bus. Additionally, sunup and sundown times are sent. With integrated KNX bus coupler.
Mounting Type
Surface Mounted
Degree of Protection
IP54
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6144/45
Communication Interface
GPS
Number of Channels
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Product Type
Support antenna
Options Provided
Weekly program | Daily program
Manual Operation
No
Battery Weight
0 g
Terminal Type
Bus Connection
Voltage Range
KNX
Power Loss
0.3 W
Color
white
Product Net Width
41 mm
Product Net Height
65 mm
Product Net Depth / Length
108 mm
Product Net Weight
112 g
RoHS Information
Product Declaration.PDF [EN] 6144/45
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Declaration of Conformity - CE
Product Declaration.PDF [EN] 6144/45
ETIM 9
EC000689 - Time switch for bus system
eClass
V11.0 : 27143140
