2CKA006151A0191
Part Number: 2CKA006151A0191
Product Information
Extended Description

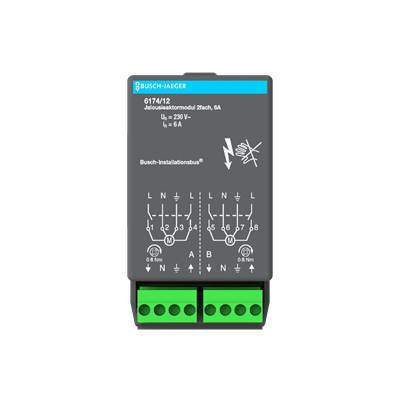

2CKA006151A0191 ABB: 2gang blind actuator module for controlling 2 independent blind groups Installation and contacting is effected exclusively in the room controller
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 6174/12
Mounting Type
Built-in
Degree of Protection
IP54
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6174/12 6174/13
Number of Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Terminal Type
Bus Connection
Current Type
AC
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
1380 A
Load Type
Electrical drives
Color
anthracite
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.141 kg
Replacement Product ID (NEW)
2CDG110003R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6174/12
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
