2CKA006151A0201
Part Number: 2CKA006151A0201
Product Information
Extended Description

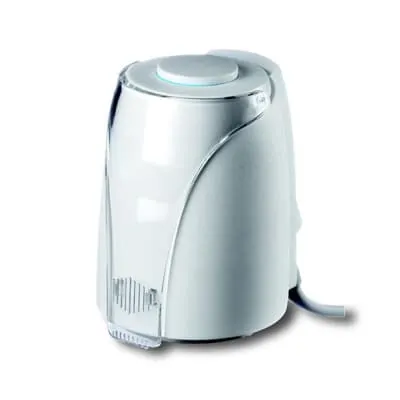

2CKA006151A0201 ABB: For the actuation of heaters and cooling ceilings in connection with conventional room temperature controllers (e.g., 1094 U) or KNX, or free@home heating/valve actuators (e.g., 6164/46, 6254/0.XX)). The Filament Transformer 6190/49-101 can be used as the power supply. With function display (opened or closed). de-energized when closed max. opening/closing time: 3 min For installing, a suitable valve adapter is required. Connecting cable: 1.0 m (pluggable) Power input: 70mA (approx. 2W) Making current: 200 mA (short-time)
Instructions and Manuals
DEBJE-b_6164_10_11_101
Mounting Type
Surface Mounted
Degree of Protection
IP54
Suitable For
2CKA006151A0170 | 2CKA006151A0171 | 2CKA006151A0172 | 2CKA006151A0173
Rated Voltage (Ur)
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Product Net Width
4.4 cm
Product Net Height
6 cm
Product Net Depth / Length
6.1 cm
Product Net Weight
0.135 kg
Replacement Product ID (NEW)
2CKA006151A0258
Replaced Product ID (OLD)
6151-0-0201
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
