2CKA006151A0207
Part Number: 2CKA006151A0207
Product Information
Extended Description

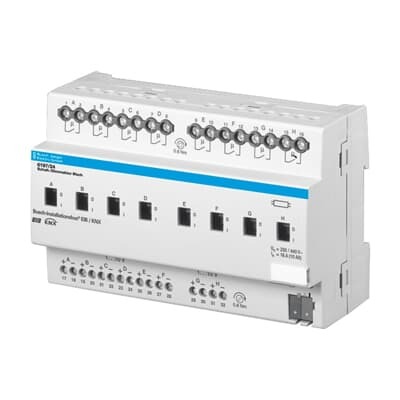

2CKA006151A0207 ABB: 8gang switch/dimmer actuator for dimming 8 electronic gear groups with 1 - 10 V interface The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 6197/XX
Wiring Diagram
Connection diagram [EN] 6197_22_23_24
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6197/2x
Number of Outputs
8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Maximum Switching Current
16 A
Maximum Control Current DC
100 mA
Rated Frequency (f)
50 / 60 Hz
Load Type
Electronic ballast 1-10 V | Universal | Fluorescent lamp
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.508 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
Replacement Product ID (NEW)
2CDG110081R0011
RoHS Information
Product Declaration.PDF [EN] 6197/24
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6197/24
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
