2CKA006151A0223
Part Number: 2CKA006151A0223
Product Information
Extended Description

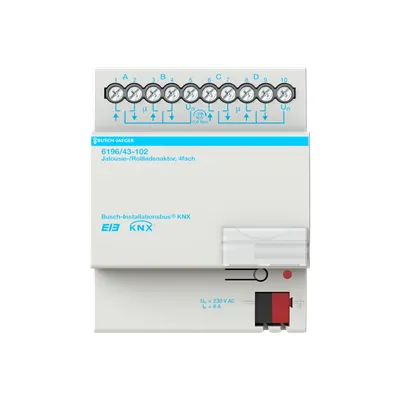

2CKA006151A0223 ABB: 230 V~, 50 Hz, 4 x 6 A for controlling 4 independent groups of roller blinds.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6196/X0-102
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6196/XX-102
Special Functions
Switching
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Terminal Type
Bus Connection
Current Type
AC
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Maximum Switching Power
2400 W
Load Type
Electrical drives
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.22 kg
Built-In Depth (t2)
65 mm
Replacement Product ID (NEW)
2CDG110130R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6196/43-102
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
