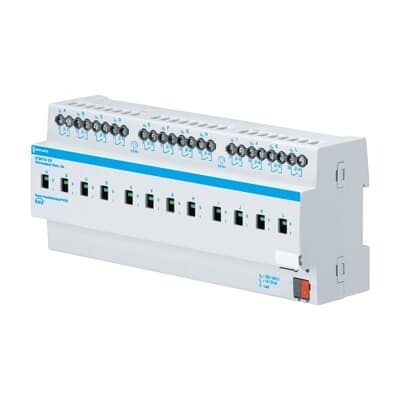

2CKA006151A0234
Part Number: 2CKA006151A0234
Product Information
Extended Description

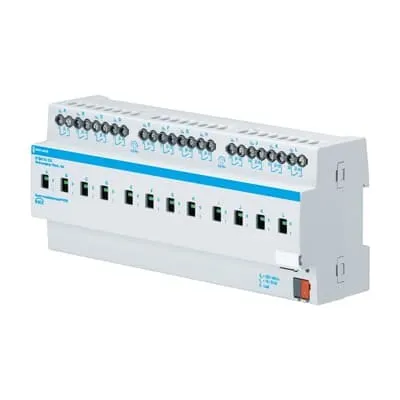

2CKA006151A0234 ABB: 12gang switch actuator. Potential free contacts parameterisable as NC contact or NO contact Manual >local operation< possible. also for switching capacitive loads up to 200 µF (e.g. ECG) Output indication of the contacts The bus can be connected via enclosed terminal block.
Mounting Type
Mounted Din Rail Component
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Number of Outputs
12
Maximum Number of Switching Outputs
12
Compatible Bus Systems
KNX
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Current (In)
16 A
Rated Frequency (f)
50...60 Hz
Load Type
AC1
Width in Number of Modular Spacings
12
Product Net Width
0.072 m
Product Net Height
0.09 m
Product Net Depth / Length
0.065 m
Product Net Weight
500 g
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 12MW
Replacement Product ID (NEW)
2CDG110268R0011
RoHS Information
Product Declaration.PDF [EN] 6194/14-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
