2CKA006151A0235
Part Number: 2CKA006151A0235
Product Information
Extended Description

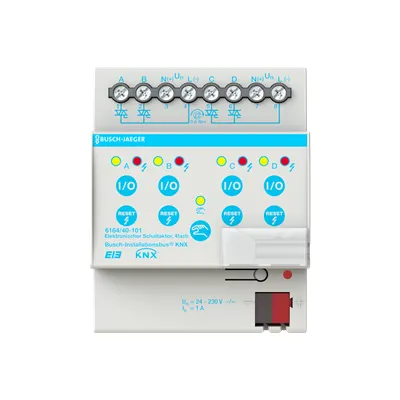

2CKA006151A0235 ABB: 4 electronic outputs (noiseless) for connecting max. 4 thermoelectric positioners 6164/10-xx or 6164/11-xx per channel With manual control. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6196/XX-102
Wiring Diagram
Connection diagramm [EN] 6164_40_101
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6164/40-101 6164/44
Contact Position Indication
ON / OFF
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Suitable for C-Load
No
Terminal Type
Bus Connection
Voltage Range
24 ... 230 V AC/DC
Output Voltage (Uout)
230 V AC/DC
Rated Current (In)
1 A
Maximum Switching Current
1 A
Maximum Switching Power
230 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.24 kg
Built-In Depth (t2)
64.5 mm
Replacement Product ID (NEW)
2CDG110058R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6164/40-101
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
