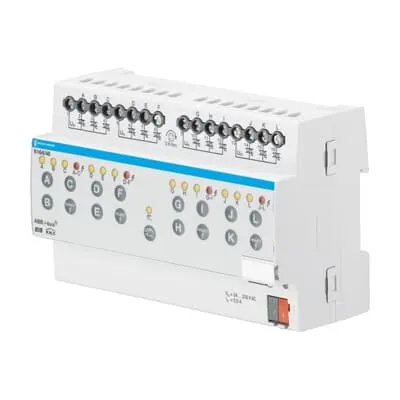

2CKA006151A0238
Part Number: 2CKA006151A0238
Product Information
Extended Description
2CKA006151A0238 ABB: For controlling thermoelectric positioners in heating and cooling systems with 24...230 V AC. The outputs are short-circuit protected and overload-protected and the start-up can be controlled by manual operation. Only one thermoelectric positioner permitted per channel
Instructions and Manuals
Product manual (.PDF) [DE] 6164/45 6164/46
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6164/45 6164/46
Number of Outputs
12
Maximum Number of Switching Outputs
12
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
0.3 A
Output Current Maximum (Iout)
0.16 A
Load Type
Electrical drives
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.24 kg
Replacement Product ID (NEW)
2CDG110117R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6164/46
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
