2CKA006151A0241
Part Number: 2CKA006151A0241
Product Information
Extended Description

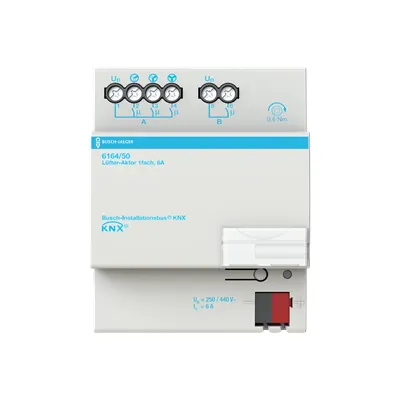

2CKA006151A0241 ABB: For activating a 3-speed fan via a multistage or alternating control module. It is possible to activate a valve or electrical devices via the available switching output. The available output can be used for activating 2 wire fan coil systems with a heating or cooling circuit or with an alternating heating/cooling circuit via the Busch installation bus KNX. Force guidance and 4 operating modes can be set for fan and valve.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6164/5X
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6164/50 6164/51
Special Functions
Valve Protection
Number of Outputs
1
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Output Current Maximum (Iout)
6 A
Load Type
Electrical drives
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
64.5 mm
Product Net Height
90 mm
Product Net Depth / Length
72 mm
Product Net Weight
0.15 kg
Replacement Product ID (NEW)
2CDG110163R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6164/50
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
