2CKA006151A0244
Part Number: 2CKA006151A0244
Product Information
Extended Description

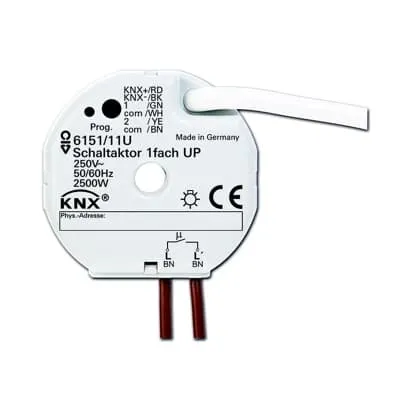

2CKA006151A0244 ABB: For switching 230 V~ consumers. 2 inputs for potential free contacts. The bus can be connected via enclosed terminal block.
Instructions and Manuals
DEBJE-0073-1-7808
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6151/11 U
Number of Outputs
1
Number of LEDs
1
Maximum Number of Switching Outputs
1
Number of Digital Inputs
2
Number of Inputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Suitable for C-Load
Yes
Number of Batteries
0
Rated Voltage (Ur)
230 V
Voltage Range
230 ... 230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Current (In)
16 A
Maximum Switching Current
16 A
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
2200 W
Product Net Width
0.098 m
Product Net Height
0.103 m
Product Net Depth / Length
0.047 m
Product Net Weight
68 g
Built-In Depth (t2)
28 mm
Replacement Product ID (NEW)
2CKA006151A0279
RoHS Information
Product Declaration.PDF [EN] 6151/11 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6151/11 U
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
