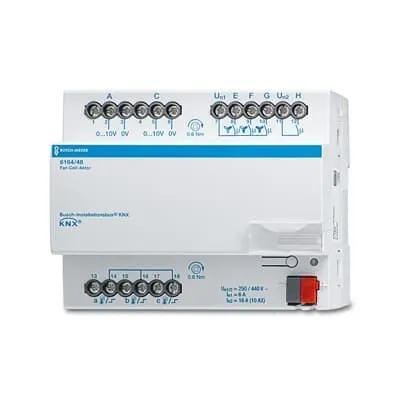

2CKA006151A0251
Part Number: 2CKA006151A0251
Product Information
Extended Description
2CKA006151A0251 ABB: Three contacts for switching a three-stage fan. Output H can be used to activate and electric heating system. Three inputs are available, e.g. for PT1000 message contacts, e.g. window and condensate water monitor. The scanning voltage is provided by the device. The actuator activates heating or cooling valves via the outputs with an analogue control signal of 0 - 10 V. The control value is made available via the KNX bus.
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manaul (.PDF) [DE] 6164/47-101 6164/48 6164/49
Number of Outputs
2
Number of Digital Inputs
3
Compatible Bus Systems
KNX
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Current (In)
10 A
Maximum Switching Current
Resistive Load 16 A
Output Current Maximum (Iout)
6 A
Rated Frequency (f)
50...60 Hz
Width in Number of Modular Spacings
6
Product Net Width
10.8 cm
Product Net Height
9 cm
Product Net Depth / Length
6.4 cm
Product Net Weight
0.288 kg
Replaced Product ID (OLD)
6151-0-0251
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
DEBJE-2CKA006151A0251-ROHS
