2CKA006152A0039
Part Number: 2CKA006152A0039
Product Information
Extended Description

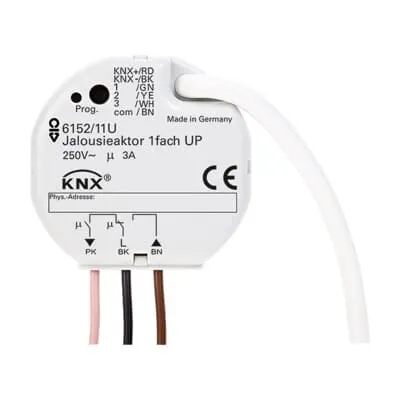

2CKA006152A0039 ABB: For controlling blind or awning motors. The bus can be connected via enclosed terminal block.
Instructions and Manuals
DEBJE-0073-1-7806
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6152/11 U
Number of Outputs
1
Number of Inputs
3
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Current Type
AC
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Current (In)
3 A
Maximum Switching Current
Resistive Load 3 A
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
600 W
Product Net Width
0.098 m
Product Net Height
0.103 m
Product Net Depth / Length
0.047 m
Product Net Weight
60 g
Built-In Depth (t2)
30 mm
Replacement Product ID (NEW)
2CKA006152A0041
RoHS Information
Product Declaration.PDF [EN] 6152/11 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6152/11 U
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
