2CKA006156A0069
Part Number: 2CKA006156A0069
Product Information
Extended Description

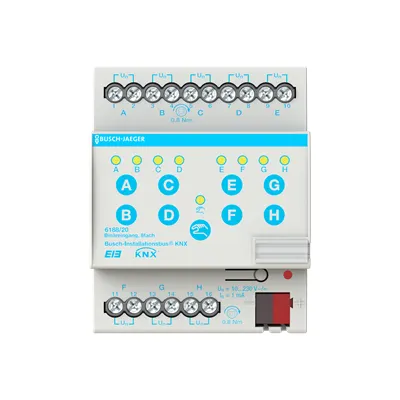

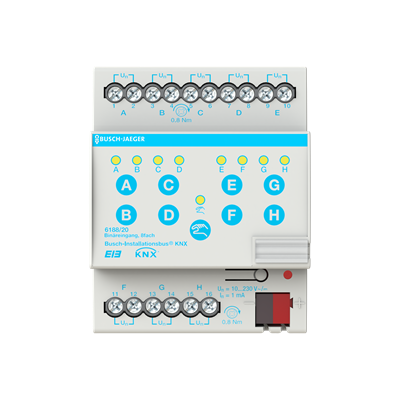

2CKA006156A0069 ABB: 8 inputs for coupling of 10...230 V AC/DC signals The bus can be connected via enclosed terminal block.
Instructions and Manuals
Product manual (.PDF) [DE] 6188/15-101 6188/18-101 6188/19 6188/20
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6188/15-101 6188/18-101 6188/19 6188/20
Number of LEDs
9
Number of Digital Inputs
8
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Voltage Range
10 ... 230 V AC/DC
Input Voltage (Uin)
10 ... 230 V
Input Voltage Type
AC/DC
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.2 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimension drawing [EN] Series installation 1gang
Replacement Product ID (NEW)
2CDG110093R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6188/20
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
