2CKA006180A0024
Part Number: 2CKA006180A0024
Product Information
Extended Description

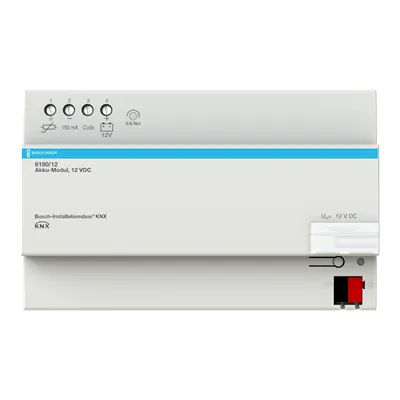

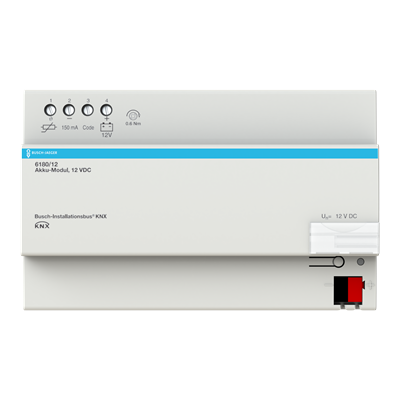

2CKA006180A0024 ABB: Lead gel battery for backup of the Busch Installation Bus KNX® KNX system voltage for bridging power failures for at least 10 min. (at full load). Use only in combination with 6180/11 Connection by 4-wire standard cable Charging is provided by 6180/11
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6180/12
Mounting Type
DIN-Rail
Ambient Air Temperature
5 ... 45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manaul (.PDF) [DE] 6180/12
Number of LEDs
0
Number of Integrated Chokes
0
Number of Supplied Lines
1
Product Range
KNX
Manual Operation
No
Rated Voltage (Ur)
12 V
Voltage Range
12 V DC
Buffer Voltage
No
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.761 kg
Dimension Diagram
Dimension drawing [EN] Series installation 1gang
Replacement Product ID (NEW)
GHQ6310062R0111
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6180/12
ETIM 9
EC000357 - Rechargeable battery
eClass
V11.0 : 27050403
