2CKA006180A0029
Part Number: 2CKA006180A0029
Product Information
Extended Description

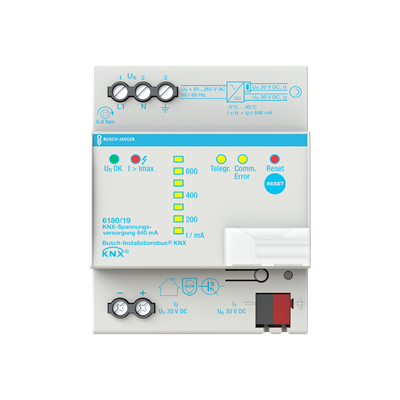

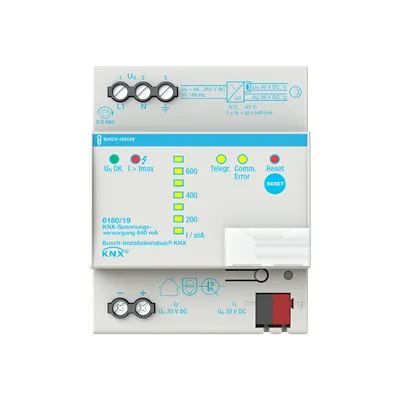

2CKA006180A0029 ABB: With integrated choke and 30 V taken out for supplying another line, e.g. main line via separate choke, connection unit and terminal 6183-101. With diagnosis function for sending of bus current/voltage, operating data, overload, bus reset. Display of bus current used via 7 LEDs. Display LEDs: operation, overload, bus traffic/communication. For generating the system voltage for one bus line. With integrated choke. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) BJE 6180/18 & 6180/19
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SV/S30.320.2.1, SV/S30.640.5.1
Number of Outputs
2
Number of LEDs
1
Number of Integrated Chokes
1
Number of Supplied Lines
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Voltage Range
110 ... 230 V AC
Output Voltage (Uout)
30 V DC
Buffer Voltage
No
Output Current Maximum (Iout)
0.64 A
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.26 kg
Replacement Product ID (NEW)
2CDG110146R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6180/19
ETIM 9
EC000675 - Power supply for bus system
eClass
V11.0 : 27143114
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
