2CKA006181A0012
Part Number: 2CKA006181A0012
Product Information
Extended Description

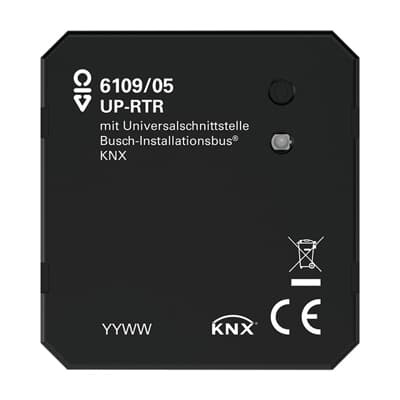

2CKA006181A0012 ABB: Room temperature controller without "local control" and without internal temperature sensor.
With universal input with:
- max. of 5 binary inputs
- 4 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V
- 2 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V and an external temperature sensor PT1000 / 6226T/ DP4-T-1.
Master/slave configuration.
With base-load operation.
The bus can be connected via enclosed terminal block.
Class of temperature controller 1
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6109/05
Maximum Number of Switching Outputs
33
Number of Digital Inputs
5
Number of Inputs
5
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Rated Voltage (Ur)
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Rated Current (In)
5 A
Surface Finishing
Matt
Material
Thermoplastic
Color
black
Product Net Width
43 mm
Product Net Height
43 mm
Product Net Depth / Length
20 mm
Product Net Weight
28.5 g
RoHS Information
Product Declaration.PDF [EN] 6109/05
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
77837f38-8060-4c0f-b25b-34f07a8ca816 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6109/05
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
