2CKA006186A0023
Part Number: 2CKA006186A0023
Product Information
Extended Description

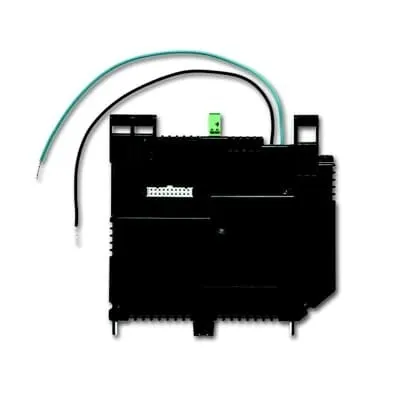

2CKA006186A0023 ABB: Power adapter for the power supply of Busch-ComfortTouch® 8136/09-… and 8136/12-…. With integrated KNX bus coupler for the establishment of the local bus connection to the ABB i-bus® KNX. With integrated audio outputs (LineOut).
Instructions and Manuals
2CKA000073B8337
Mounting Type
Flush Mounted
Type of Fastening
Clamp
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP20
Communication Interface
Ethernet
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
110 ... 230 V
Auxiliary Voltage AC/DC
110 V AC/DC | 230 V AC/DC
Rated Frequency (f)
50 / 60 Hz
Product Net Width
140 mm
Product Net Height
43 mm
Product Net Depth / Length
144.5 mm
Product Net Weight
325 g
E-Number (Finland)
2815297
E-Number (Sweden)
1738372
RoHS Information
Product Declaration.PDF [EN] 6186/01 UP-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6186/01 UP-500
ETIM 9
EC000634 - Bus coupler for bus system
eClass
V11.0 : 27143108
