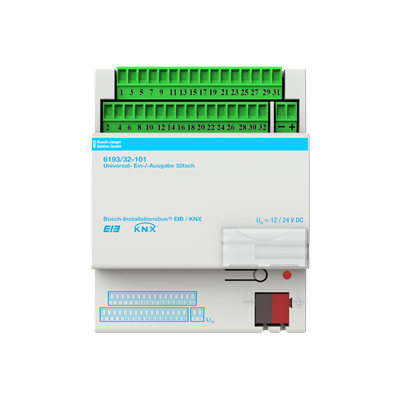

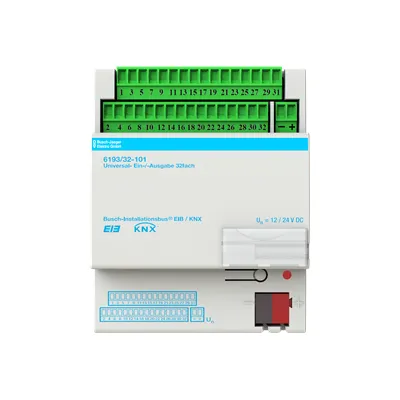

2CKA006189A0091
Part Number: 2CKA006189A0091
Product Information
Extended Description
2CKA006189A0091 ABB: 32 inputs/outputs for connecting potential free low-voltage push buttons or signal lamps (max. 80 mA each.). Not suitable for controlling relay. Connecting cables max. 10 m. The channels are freely parameterisable as output or input with the help of ETS. External stabilised voltage supply (12-24 V DC, e.g. 6191/11-101 or 6193/33-101) is required. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6193/32-101
Wiring Diagram
Connection diagram [EN] 6193_32
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6193/32-101
Special Functions
Switching
Sub-Function
LED controlling
Number of LEDs
1
Maximum Number of Switching Outputs
32
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 32
Number of Input Channels
32
Number of Output Channels
32
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Current Type
DC
Rated Operational Voltage
10 ... 30 V DC
Auxiliary Voltage AC/DC
10 ... 30 V DC
Input Voltage (Uin)
10 ... 230 V DC
Output Voltage (Uout)
10 ... 230 V DC
Maximum Switching Current
0.08 A
Maximum Switching Power
2 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.15 kg
Dimension Diagram
Dimension drawing [EN] m_6193_32
Replacement Product ID (NEW)
2CDG110071R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6193/32-101
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
