2CKA006189A0097
Part Number: 2CKA006189A0097
Product Information
Extended Description

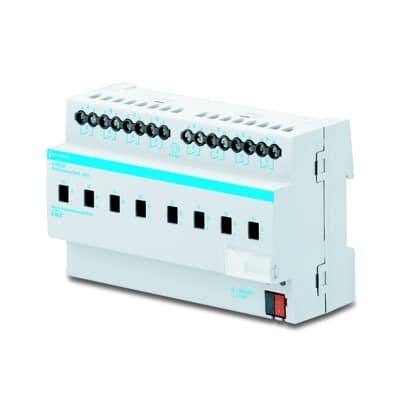

2CKA006189A0097 ABB: binary output, 8fach, 10AX
Mounting Type
Mounted Din Rail Component
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Number of Outputs
8
Maximum Number of Switching Outputs
8
Compatible Bus Systems
KNX
Product Range
KNX
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Current (In)
10 A
Rated Frequency (f)
50...60 Hz
Load Type
AC1
Width in Number of Modular Spacings
8
Product Net Width
0.228 m
Product Net Height
0.03 m
Product Net Depth / Length
0.02 m
Product Net Weight
0.46 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
RoHS Information
Product Declaration.PDF [EN] 6195/37
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
